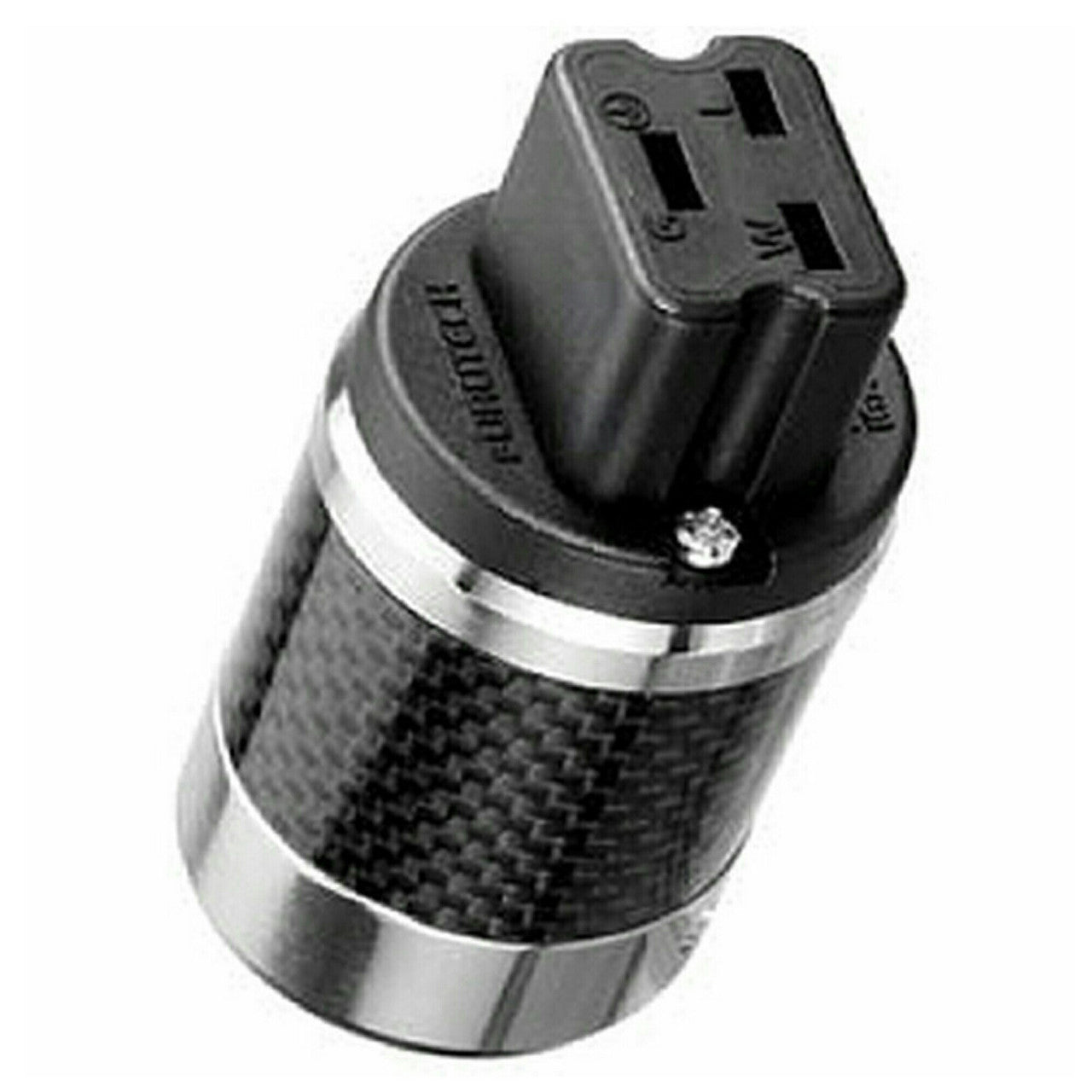

FURUTECH TRIPLE C POWER CABLE TCS-31 with FURUTECH plug options

We can custom make this cable for you. All you need to do is simply select Length, Mains plug and IEC options from the drop down menus.

TCS range featuring high grade Triple-C forged copper, 12 gauge -TCS-31, recommended for amplification and high-current applications.

The Furutech Triple power cable is made with Furukawa high-purity oxygen-free copper using a special forging process. Unlike regular OFC (oxygen-free copper), almost all of the impurities of this high-purity OFC have been removed at the micron level through a special casting process unique to Furukawa.

Purposely designed and developed for audio signal conductors, α (Alpha) PC-Triple C is flexible, strong and can be drawn into a very fine wire. This new conductor, while not single-crystal like PCOCC, features crystal grain boundaries that are almost totally free of impurities which allows even the smallest of signals to be transmitted. While PCOCC is a single-crystal conductor, it is susceptible to imperfections during production.

Since α (Alpha) PC-Triple C employs a fixed angle continuous transport forging process, pressure is applied to the high-purity oxygen-free copper tens of thousands times. This ensures that any crystal grain boundaries that were present in a vertical direction become longitudinal, and the crystals become connected and uniform in their direction. This process also helps to remove the imperfections that are often found in PCOCC, which create a more conductive and acoustic conductor.

The resulting conductor has an extremely fine resolution down and through the very low noise floor, improved sound staging and image palpability, a musical, attractive, “round” midrange, tight and controlled bass, plus power and dynamics to spare to set your music on fire!

SPECIFICATIONS:

• Alpha PC Triple C conductor: diameter 2.5mm (12 AWG)
• Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 5.0mm
• Inner Sheath: Special grade Flexible PVC (Black) diameter 12.0mm
• Shield: 0.12mm OFC Wire Braid
• Outer Sheath: Flexible PVC (Dark Green) diameter 16.0mm
• Purity > 99.996%
• Conductivity (EC)≒101.5 IACS%
• Tensile strength (TS)　≒250 MPa
• Elasticity　(E) ≒35% Wire (1.3mmΦ)
