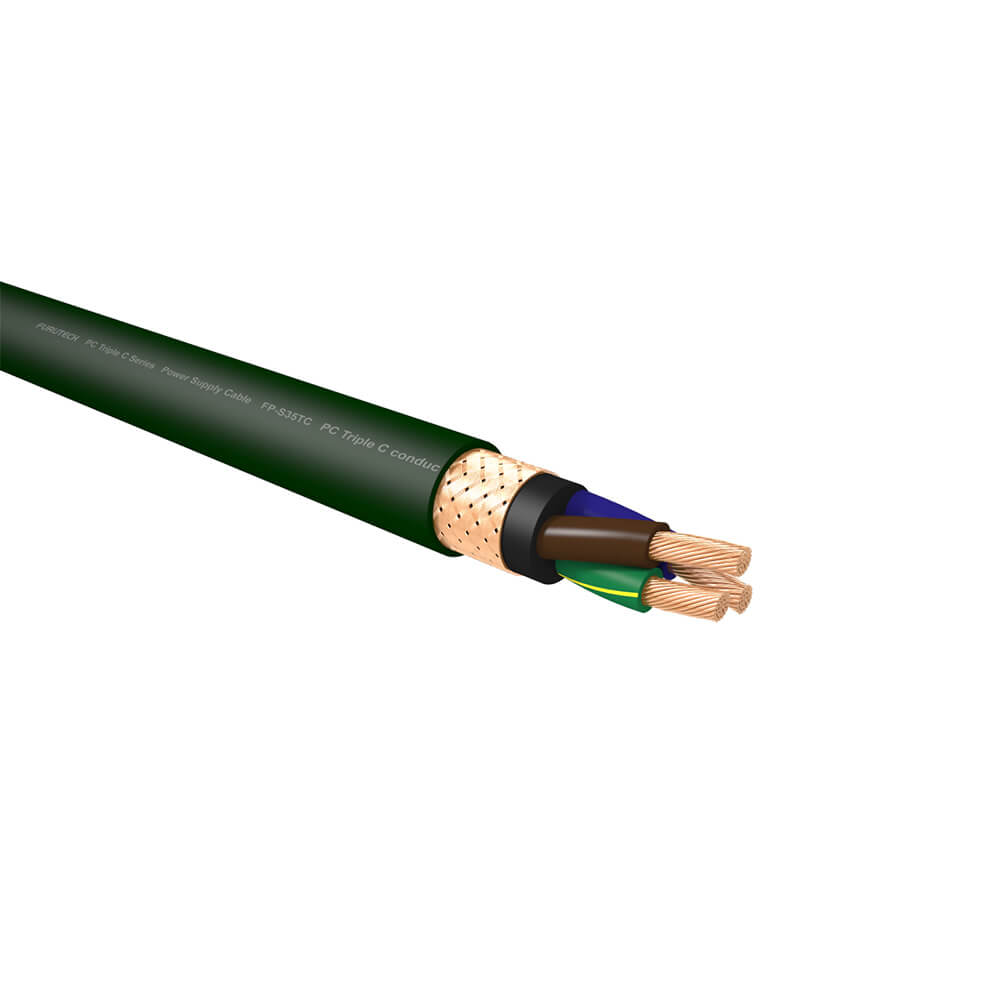

FURUTECH TCS-31 TRIPLE C POWER CABLE DIY

CABLE ONLY - DIY

TCS range featuring high grade Triple-C forged copper, 12 gauge -TCS-31, recommended for amplification and high-current applications.

The Furutech Triple power cable is made with Furukawa high-purity oxygen-free copper using a special forging process. Unlike regular OFC (oxygen-free copper), almost all of the impurities of this high-purity OFC have been removed at the micron level through a special casting process unique to Furukawa.

Purposely designed and developed for audio signal conductors, α (Alpha) PC-Triple C is flexible, strong and can be drawn into a very fine wire. This new conductor, while not single-crystal like PCOCC, features crystal grain boundaries that are almost totally free of impurities which allows even the smallest of signals to be transmitted. While PCOCC is a single-crystal conductor, it is susceptible to imperfections during production.

Since α (Alpha) PC-Triple C employs a fixed angle continuous transport forging process, pressure is applied to the high-purity oxygen-free copper tens of thousands times. This ensures that any crystal grain boundaries that were present in a vertical direction become longitudinal, and the crystals become connected and uniform in their direction. This process also helps to remove the imperfections that are often found in PCOCC, which create a more conductive and acoustic conductor.

The resulting conductor has an extremely fine resolution down and through the very low noise floor, improved sound staging and image palpability, a musical, attractive, “round” midrange, tight and controlled bass, plus power and dynamics to spare to set your music on fire!

SPECIFICATIONS:

• Alpha PC Triple C conductor: diameter 2.5mm (12 AWG)
• Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 5.0mm
• Inner Sheath: Special grade Flexible PVC (Black) diameter 12.0mm
• Shield: 0.12mm OFC Wire Braid
• Outer Sheath: Flexible PVC (Dark Green) diameter 16.0mm
• Purity > 99.996%
• Conductivity (EC)≒101.5 IACS%
• Tensile strength (TS)　≒250 MPa
• Elasticity　(E) ≒35% Wire (1.3mmΦ)
