PERREAUX 300iX INTEGRATED AMPLIFIER - YOU CHOOSE YOUR COLOUR

PERREAUX 300iX INTEGRATED AMPLIFIER - YOU CHOOSE YOUR COLOUR

$15,995.00
$15,995.00
Sale Sold out
Tax included. Shipping calculated at checkout.

THE ULTIMATE FUSION OF COLOUR AND SOUND

AVAILABLE ON BACKORDER

Engineered to impress - the no-compromise, 300iX stereo integrated amplifier features iOS / Android and IR remote control, Bluetooth audio streaming, Home Theatre input, integrated ultra-high resolution Digital Audio Converter (DAC), Phono module for Turntable connection and a World-class Headphone amplifier. Available in any colour or your hearts desire - or black.

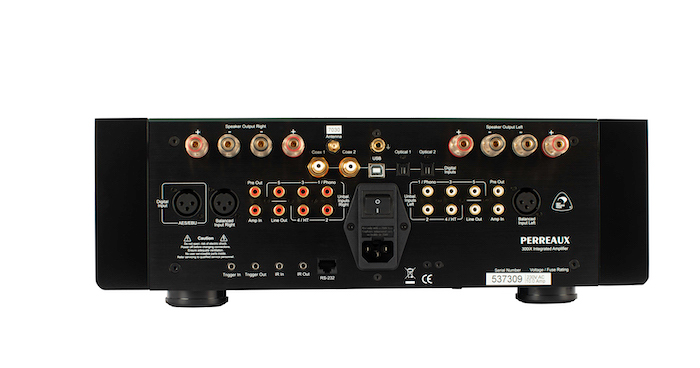

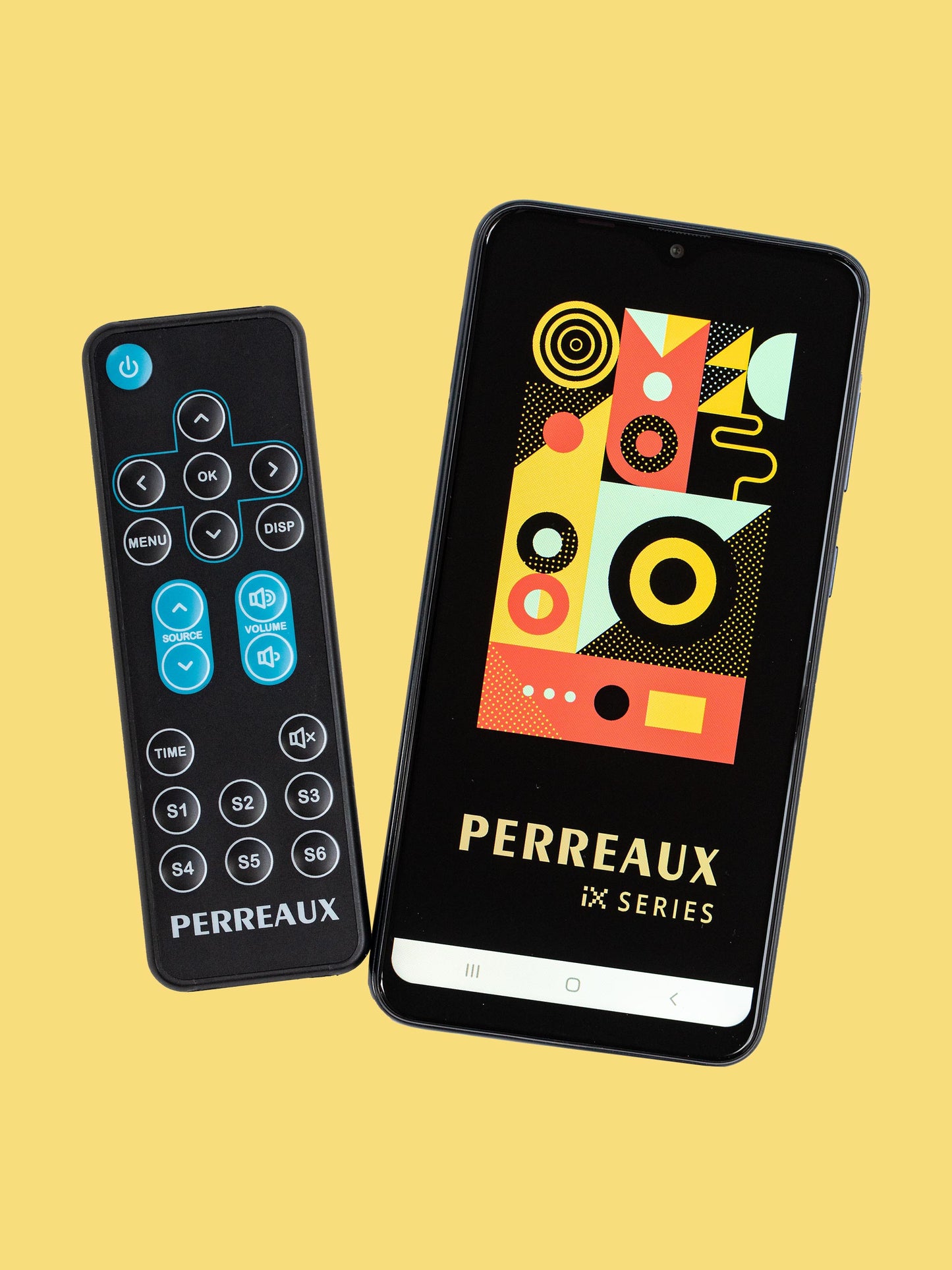

Our most powerful integrated amplifier, the PERREAUX 300iX is a hand-crafted, 300 Watt, stereo integrated amplifier featuring a host of Analog and Digital audio connections including AES EBU, USB, Bluetooth Audio, Optical (Toslink) and Coaxial (SPDIF) Digital Inputs, Balanced (XLR) and Unbalanced (RCA) Analog Inputs. With an onboard, integrated 24 bit, 384k, SABRE Pro 9038 DSD DAC the 300iX is capable of playing high resolution digital files from your computer or streaming Bluetooth audio direct from your smartphone or tablet. Additionally the 300iX also features a class-leading PERREAUX MM / MC Phono preamplifier module with Earthing Terminal for simple connection of either a Moving Coil or Moving Magnet Turntable. Headphone enthusiasts are also catered to with the inclusion of the legendary PERREAUX SXH2 Headphone amplifier. This high-power, Class A Headphone amplifier easily power headphones rated from 8 - 600 Ohms. Full control of the 300iX is available via the downloadable PERREAUX Bluetooth iOS / Android app, Front panel interface or supplied hand-held Infra Red Remote Control. Rack mounting kit also available separately.

SPECIFICATIONS


Amplifier

Rated Power Output (per channel):
300W into 8Ω 500W into 4Ω
Maximum Power Output (prior to clipping, per channel):
TBC into 8Ω TBC into 4Ω
Total Harmonic Distortion + Noise
<0.005%, Typically 0.002% @ 1kHz, rated power into 8Ω
Frequency Response
20Hz to 20kHz: +0.00dB, -0.15dB 5Hz to 60kHz: +0.00dB, -0.50dB

Preamplifier

Input Impedance
Unbalanced: 12kΩ Balanced: 22kΩ
Input Overload
Unbalanced: 8Vrms Balanced: 8Vrms
Volume Control Range:
-95.5dB to +12dB
Volume Control Resolution:
0.5dB per step
Input Volume Trim Range:
±40dB
Balance Resolution:
0.5dB
Balance Range:
40dB

Headphone Amplifier

Headphone Rated Power Output:
1.0W into 32Ω 150mW into 300Ω
Headphone Total Harmonic Distortion + Noise
Low impedance mode (-17dB): <0.003%, 1kHz at 540mW into 8Ω High impedance mode: <0.002%, 1kHz at 100mW into 600Ω
Headphone Volume Trim Range:
±40dB

Digital to Analog Converter (DAC)

Digital Inputs:
2 SPDIF Coax (RCA) 2 SPDIF Optical (Toslink) 1 USB (Type B) 1 AES EBU (XLR)
Chipsets:
ES9038PRO Sabre DAC
Input Sample Rate:
32, 44.1, 48, 88.2, 96, 176.4, 192kHz (Coax, Optical) 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / DSD 64, 128, 256 (USB)
Input Word Length (maximum):
24-bit (Coax, Optical, AES EBU) 32-bit (USB)
Input Impedance:
75Ω (Coax)
Isolation
Coax / AES EBU: Yes Optical: n/a USB: Asynchronous and Galvanically Isolated
Digital to Analogue Conversion:
32-bit/384kHz
Output Voltage:
2.0Vrms @ 0dBFS
Total Harmonic Distortion + Noise
0.002%, 20Hz-20kHz @ 0dBFS
Frequency Response
20Hz to 20kHz: +0.0dB, -0.1dB 5Hz to 94kHz: +0.0dB, -3.0dB
Stop Band:
105kHz
Stop Band Attenuation:
125dB

Phono Stage

Input Impedance
Low Gain (MM): 47kΩ High Gain (MC): 100Ω
Gain
Low Gain (MM): 40dB High Gain (MC): 60dB
Total Harmonic Distortion + Noise
0.1% @ 1kHz, low gain setting < 0.5% 20hZ to 20kHz, low gain setting
RIAA Accuracy:
±0.5dB, 20Hz-20kHz
Signal to Noise Ratio (unweighted):
better than 85dB, low gain setting

Dimensions

Width:
426mm (16.8")
Height:
149mm (5.9")
Depth:
344mm (13.5")
Weight:
21.5kg (47.4lb)
