SUPRA COMBICON KIT -SET OF SPADE AND BANANA

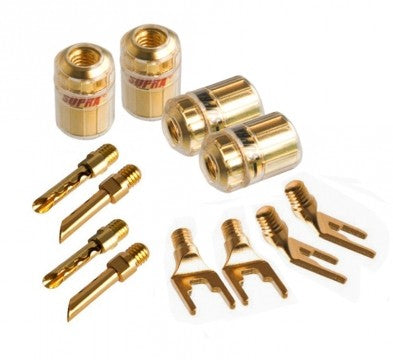

CombiCon Kit:

• A set of 2 pairs of connector bodies,
• 4 pieces of spades and
• 4 pieces of Bananas/BFA.

CombiCon Spade:
24K gold plated loudspeaker connector for cables up to 6 mm2. The cable can be attached straight on axis or at a 90 degree angle. Another spade can be attached to the connector body.

CombiCon Banana:
24K gold plated loudspeaker connector for cables up to 6mm2. The banana pin fits also BFA plugs or connectors. The cable can be attached straight on axis or at a 90 degree angle. A spade can be attached to the connector body.

CombiCon:
This combination connector comprises two parts: a termination part to be screwed onto a connector body. The connector part is of two types; Spade and Banana pin, which in turn also fit BFA plugs.

The Connector Body:
The connector body can be attached to the cable either on axis or in a 90 degree angle. See the R.H. picture above. Also a spade terminated cable can be attached to the connector body. Printing in red and black, respectively, for polarity identification.

The Termination Parts:
The Banana pin also fits BFA connectors.
The Spade is angled for easier mounting in tight spaces.
