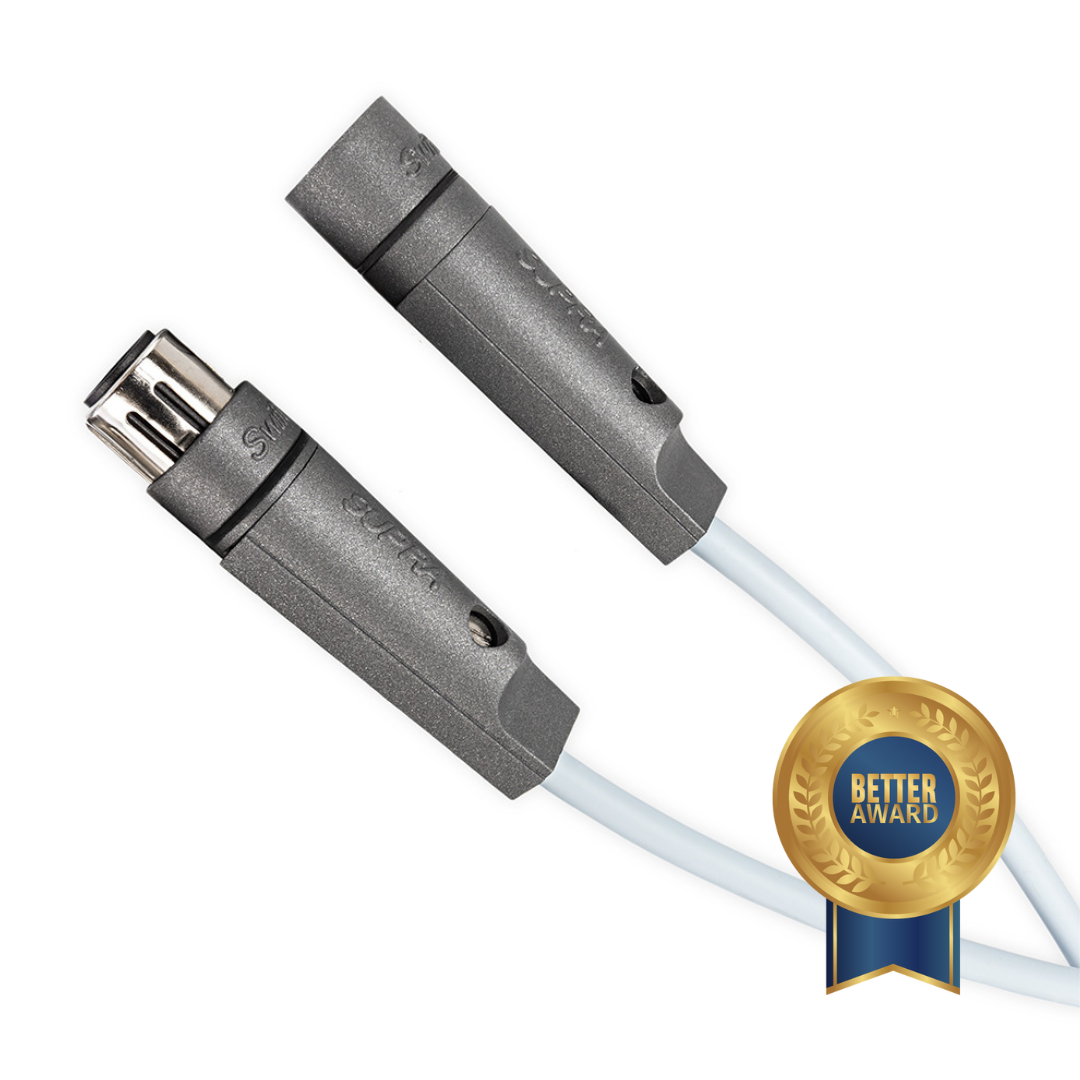

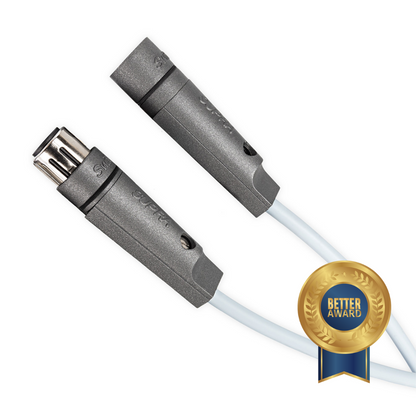

SUPRA DAC XLR - AUDIO DIGITAL INTERCONNECT CABLE- BALANCED AES/EBU

The Supra DAC-XLR is a 110 Ohm balanced digital interconnect, perfect for using between a CD player/transport and a DAC

A fast interconnect of extremely low capacitance. Low inductance is better for a loudspeaker cable, whereas for an interconnect the capacitance should ideally be low. Supra DAC is insulated with PE foam skin which reduces capacitance to only 45pF/metre.

Screened with Supra's very efficient and strong semi-conductive nylon ribbon. Supra DAC is designed for digital audio and is harmonised with the AES/EBU 110 ohm standard.

Features & Benefits

High speed and bandwidth - Allows high quality transfer of high bitrate formats and exceptional square wave transient response time
True 110 ohm - meets the close tolerance standard to transfer signal without losses or jitter
Extremely noise immune - Lowest possible signal distortion
Balanced transmission, cancels any signal discrepancy between hot and cold lead - Any noise entering, will not enter symmetrically and therefore become void.

Application example: AES/EBU; Professional digital audio signals, and high-end hifi equipment, e.g. between CD-drive and DAC.

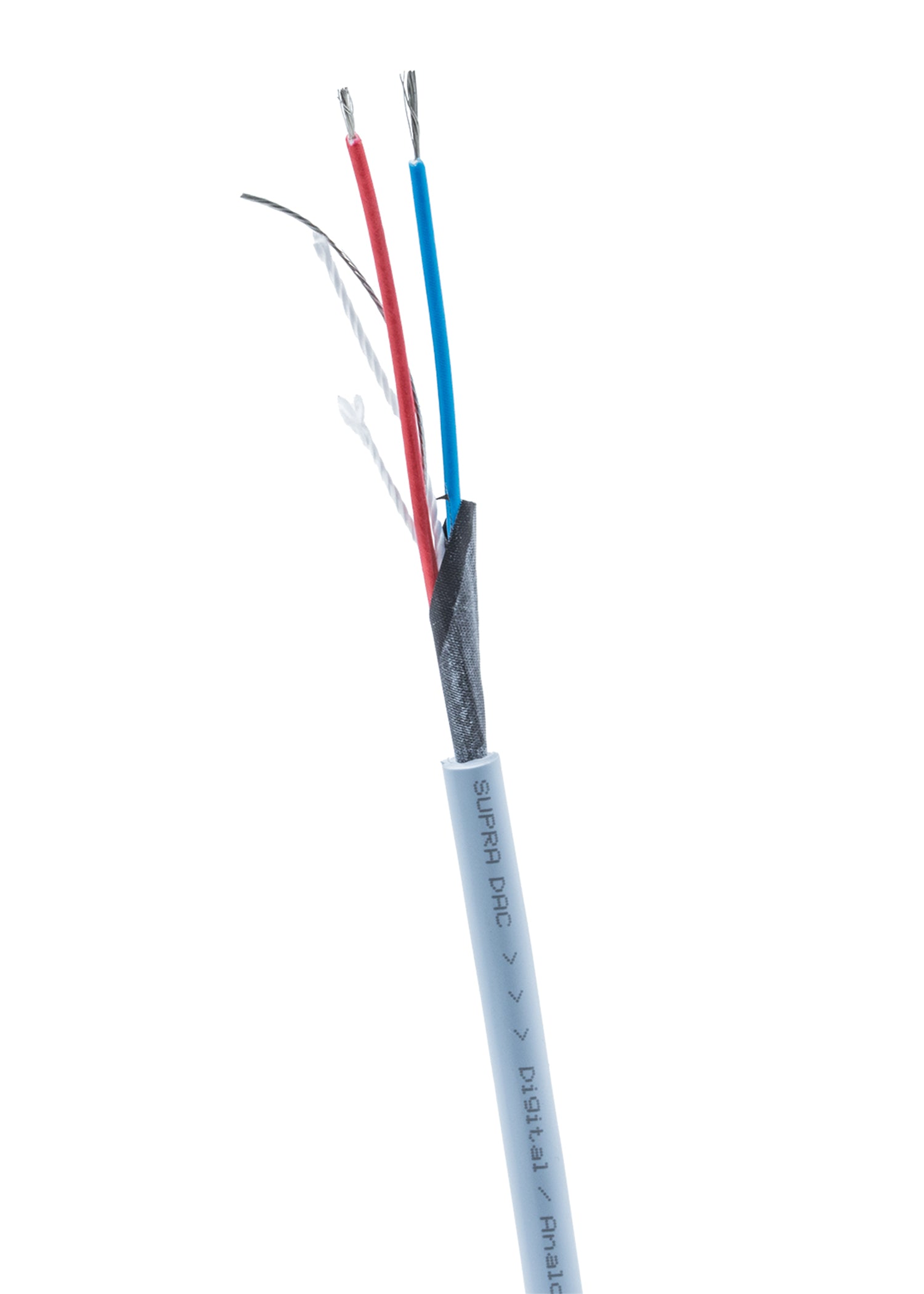

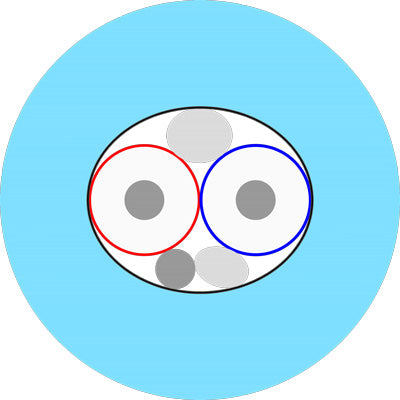

Mechanical Specifications

Cross section area 0.54 / 20 mm2 / AWG
Number of strands per lead 19 pieces
Strand diameter 0.19 mm
Conductor material Oxygen free 5N copper
Insulation PE Foam (air filled)
Screen Coverage 100% semi-conductive nylon
Jacket Heat & age resistant PVC
External diameter 6.1 mm
Weight Not applicable g/m

Electrical performance

Resistance 8.1 Ohm/km
Inductance 0.28 uH/m
Capacitance 45 pF/m
Characteristic impedance 110 Ohm
Velocity factor 0.78 x C (speed of light)
