SUPRA DAC SL ANALOGUE INTERCONNECT CABLE

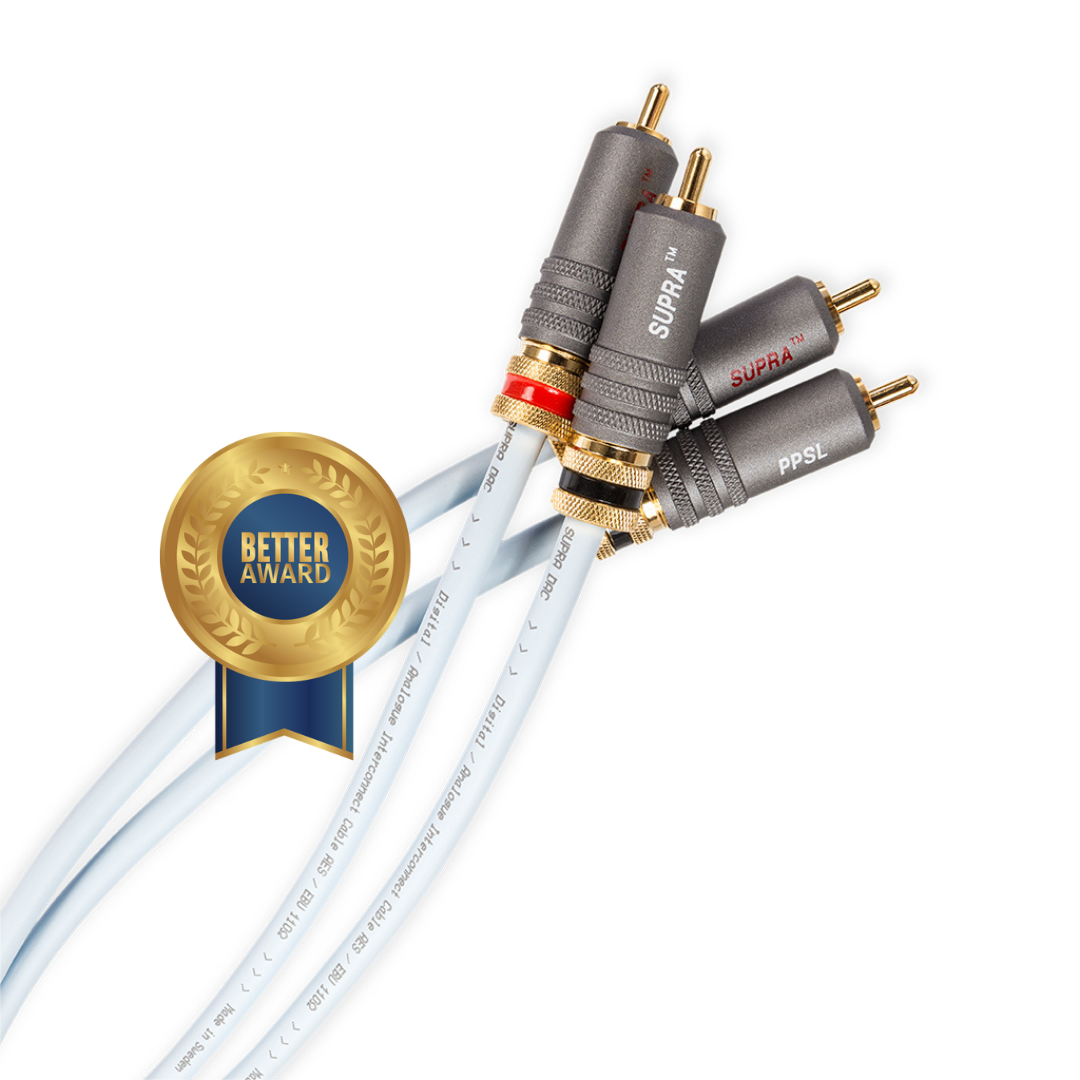

Supra DAC-SL - Analogue Interconnect.

 Supra DAC is one of Supra's finest RCA connectors Supra PPSL, an all metal 24K heavy-duty gold plated connector with squeeze locking of both the cable strain relief as well as connection to the chassis RCA.  Best applied between CD player, DAC (Digital to Analogue Converter), pre-amplifier and power amplifier.

Mechanical data:
• 24K goldplated plugs
• Shileded for interference
• Availible as a male-male cable
• Number of leads, totally (specified): 3 (+, - and drain) pieces
• Lead area: 0.54 mm2
• Number of strands per lead: 19 pieces
• Strand dimension: Ø 0.19 mm
• Lead material: Oxygen-free 5N Copper
• Di-electric (insulation): PE foam with encapsulated air
• Shield: Semiconductive Carbon Nylon
• Jacket: Age and heat resistant PVC
• Outer dimension: Ø 6.1 mm
• Weight: 43 g/m

Electrical properties:
• Capacitance: 45 pF / m
• Characteristic impedance: 110 Ohms
• Velocity factor: 0.78 x C (speed of light)
