SUPRA DAC-X AUDIO - ANALOGUE INTERCONNECT CABLE

Supra DAC - A lightning-fast interconnect cable with no brakes

Supra DAC - Ultra-fast digital/analogue interconnect with extraordinary shielding and capacitance properties
An ultra-fast interconnect featuring very low capacitance and highly effecient shielding. Supra DAC's di-electric of PE foam, containing a minimum of solid PE plastic, but instead the best possible di-electric easily available - air - which exhibits only 45 pF/m. Further it is shielded with our highly efficient and mechanically durable semi-conductive Carbon-filled Nylon.

The Supra DAC high frequency properties are exceptional, thanks to its low capacitance, hence high speed transient response. The velocity factor is as high as 78% of the speed of light, promoting raise and fall time of digital square wave. In the analogue domain the speed means timing/phase preservation between high and low frequency waves giving virtually no frequency roll-off, maintained 3D sound stage and rapid transients. With the others often using PTFE/Teflon the velocity factor would have been only 71%.

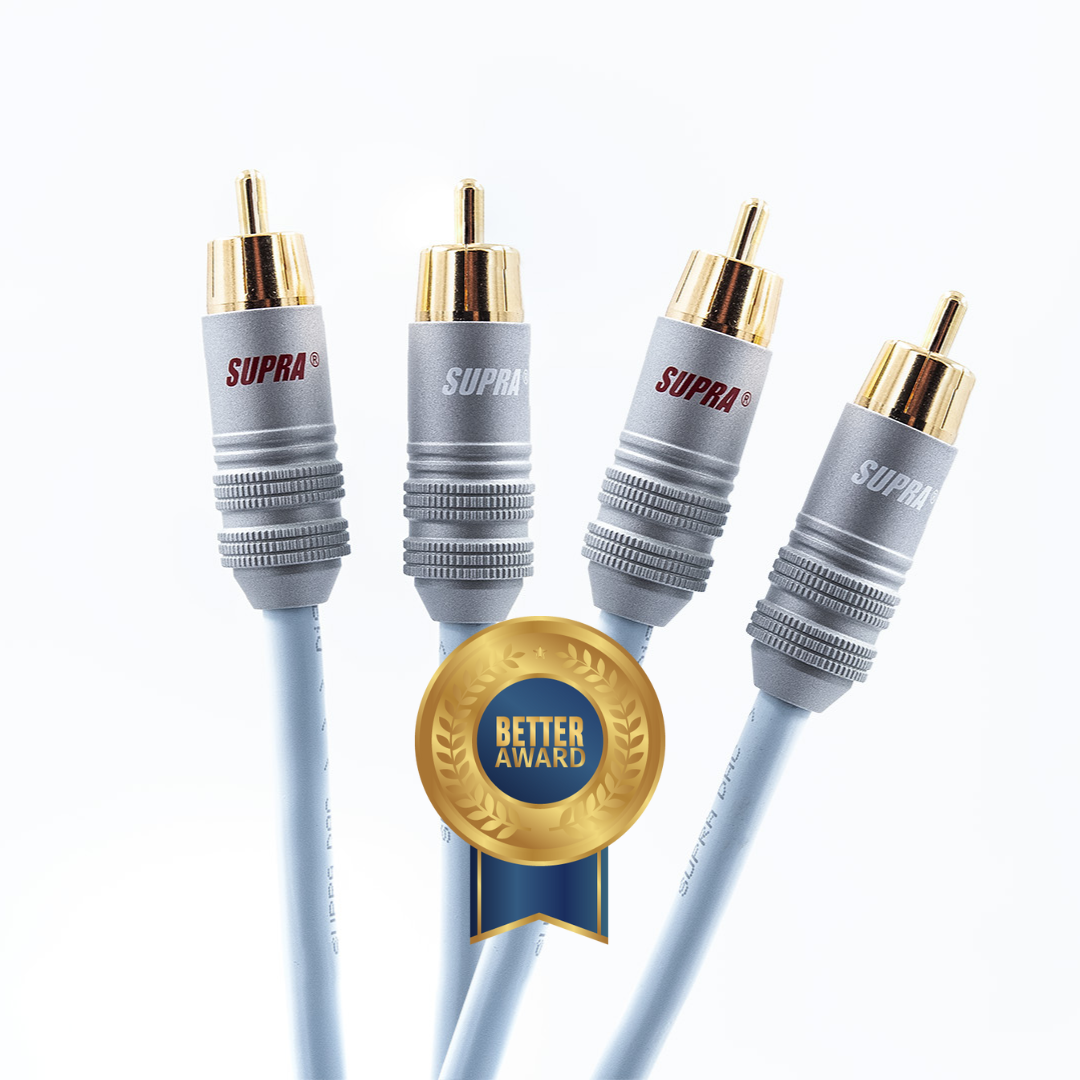

The Supra DAC cable provided with our RCA connectors Supra PPX an all metal 24K goldplated RFI tight connector. Best applied between CD player, DAC (Digital to Analogue Converter), pre-amplifier and power amplifier.

TECHNICAL SPECS

Number of leads, totally (specified) 3 (+, - and drain) pieces
Lead area 0.54 mm2
Number of strands per lead 19 pieces
Strand dimension Ø 0.19 mm
Lead material Oxygen-free 5N Copper
Di-electric (insulation) PE foam with encapsulated air
Shield Semiconductive Carbon Nylon
Jacket Age and heat resistant PVC

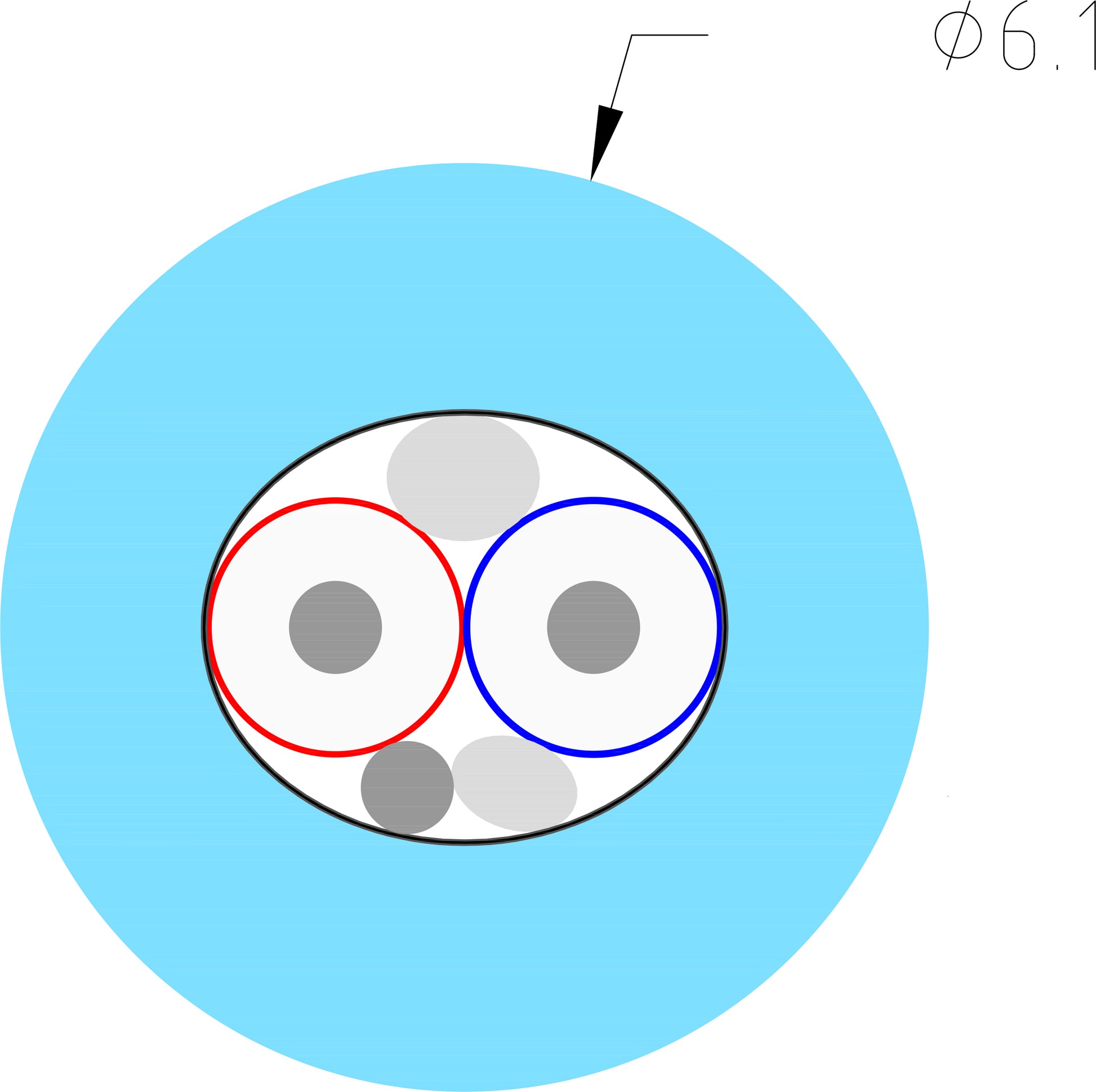

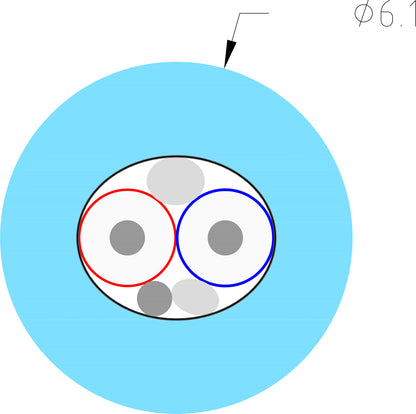

Outer dimension Ø 6.1 mm
Weight 43 g/m
Length per bobbin 50 m


Electrical properties

Resistance - Ω / km
Capacitance 45 pF / m
Characteristic impedance 110 Ω
Velocity factor 0.78 x C (speed of light)
