SUPRA DUAL 2RCA-2RCA AUDIO ANALOGUE INTERCONNECT CABLE
SUPRA DUAL 2RCA-2RCA AUDIO ANALOGUE INTERCONNECT CABLE
DUAL 2RCA-2RCA AUDIO
Supra Dual - Value for the money
Supra Dual is a dual in-line cable for primarily single-end interconnections. It displays in spite of its pricing the typical Supra trade marks of efficient aluminum foil shielding and low capacitance allowing good noise rejection and fast transient response. It will typically fit as an analogue interconnect in an entry level hifi system and thus raising the audible performance noticeably.

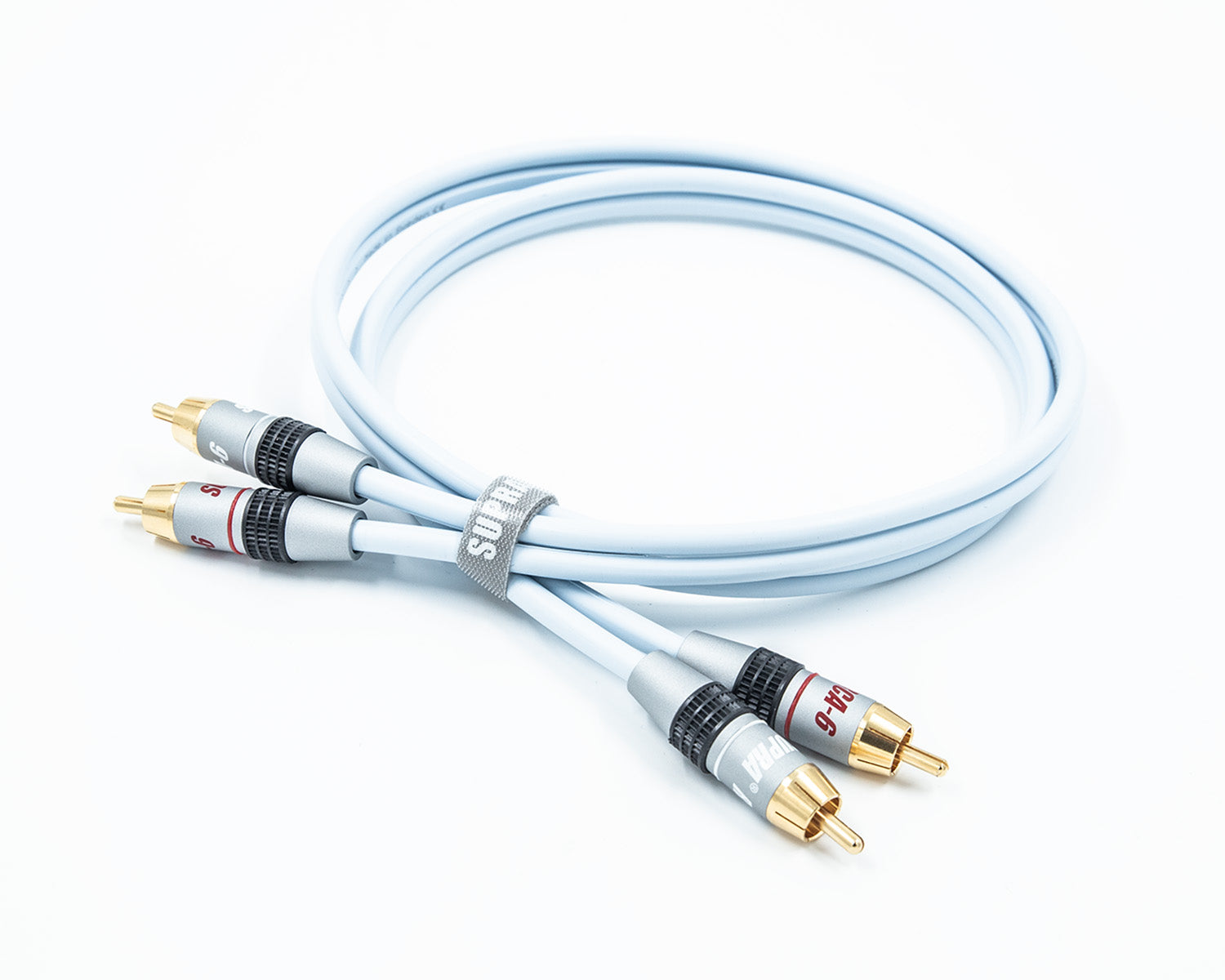

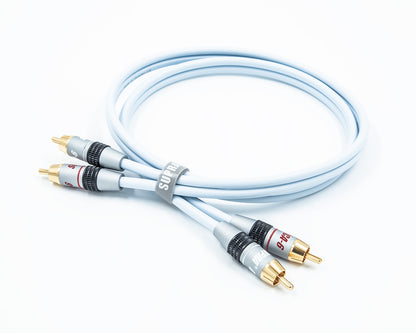

Supra Dual-RCA - Analogue Interconnect
A value-for-money test winner, that will replace the supplied original sub-standard hifi system interconnects and leave you hours in sweet spot re-discovering your music collection. Use e.g. between CD-player and amplifier or any other interface where an analogue stereo interface is required. Provided in standard issue with SUPRA RCA-6 connectors. Can optionally be supplied with other suitable Supra connectors at an additional price.

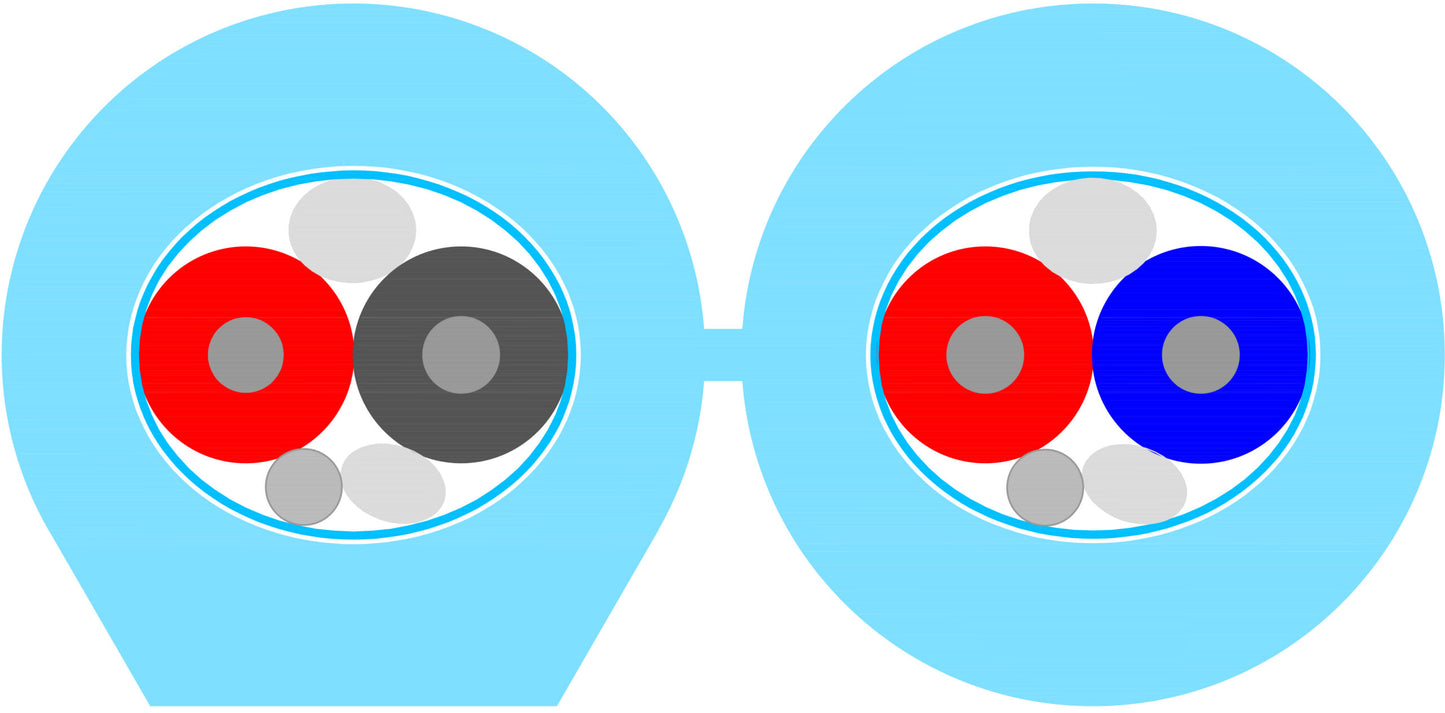

TECHNICAL DATA Mechanical data
Number of leads, totally (specified) | 6 (+, - and drain x 2 channels) | pieces |
Lead area | 0.24 | mm2 |
Number of strands per lead | 19 | pieces |
Strand dimension | Ø 0.127 | mm |
Lead material | Tin plated, oxygen-free, 5N copper | |
Di-electric (insulation) | PE | |
Shield | 2 (Individual aluminized PET foil per each channel ) | pieces |
Jacket | Age and heat resistant PVC | |
Outer dimension | 2 x Ø 5.5 | mm |
Weight | 70 | g/m |
Cable length per bobbin | 100 | m |
Electrical properties
Resistance | 72 | Ω / km |
Capacitance | 52 | pF / m |
Characteristic impedance | n/a | Ω |
Velocity factor | 0.66 | x C (speed of light) |
Good cables, much appreciated burn-in service also. Recommended.
