SUPRA HDMI-HDMI UHD8K V2.1 - TRUE 8K/60 Hz -4K/120 Hz ULTRA HD W/Ethernet

SUPRA HDMI-HDMI UHD8K V2.1 - TRUE 8K/60 Hz -4K/120 Hz ULTRA HD W/Ethernet

Regular price $110.00
Regular price Sale price $110.00
Sale Sold out
Tax included. Shipping calculated at checkout.

HDMI-HDMI 2.1 UHD8K 0.5M-5M

UHD8K HDMI Cable (7mm)

HDMI Ultra High Speed with Ethernet Cable
HDMI cables 0.5m to 5m is assembled with UHD8 slim cable. Approved for HDMI v2.1 8K/HDR up to 5m.

From the start and on, we have delivered trustworthy HDMI cables, hence our reputation on the installation market, where we supply large quantities to hotels, conference facilities and similar, and where no one overlooks sub-standard performance. Nine years of continuous product development has resulted in the Supra HD5 HDMI Met-S/B, which (according to us) is the best passive HDMI cable there is, offering HDMI High Speed with Ethernet & 8K resolution.

Ultra High Speed HDMI with Ethernet transmission

SUPRA launched its first HDMI cable in 2004. Already from the very beginning, the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission, a fact many customers soon found reason to doubt. When we at Supra started our development, we knew how challenging this would become and left nothing to chance.

We know also the burden of proof, why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA - a quality assurance treat to our customers.

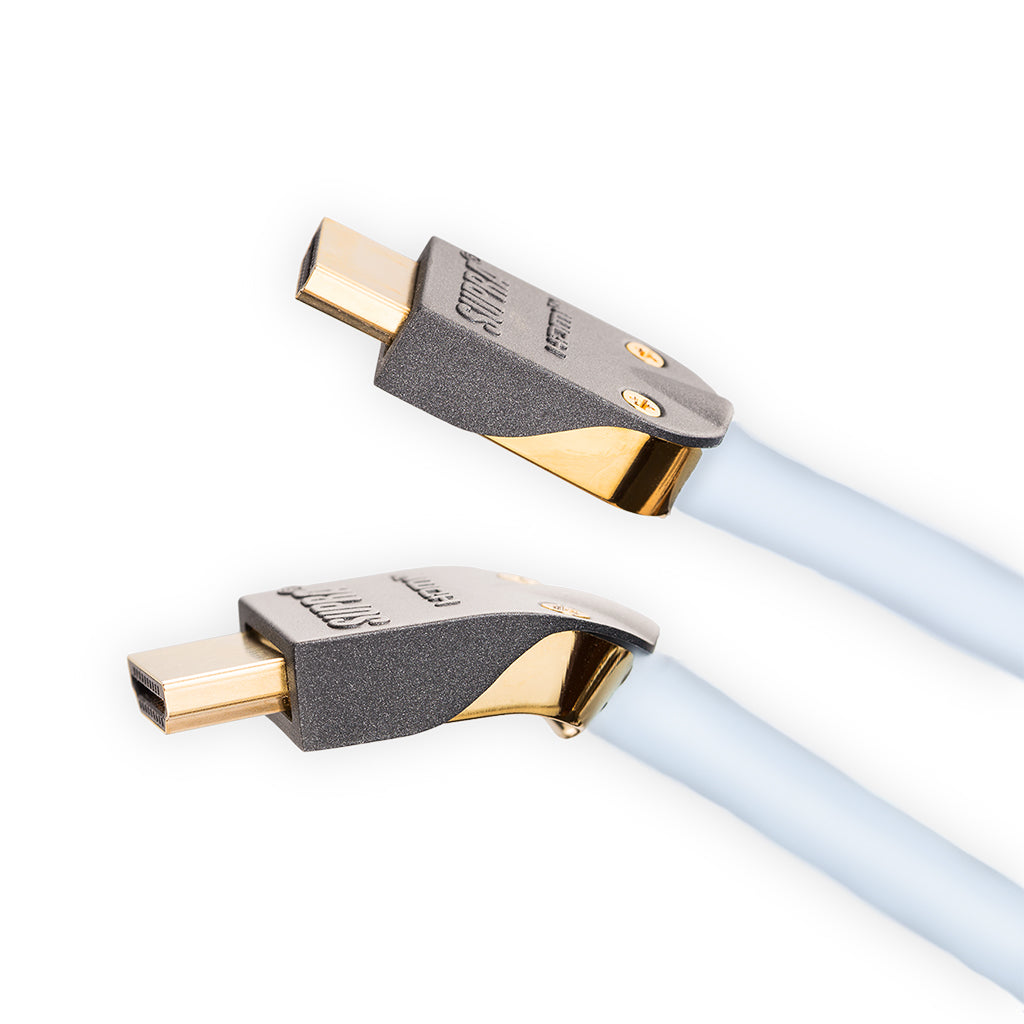

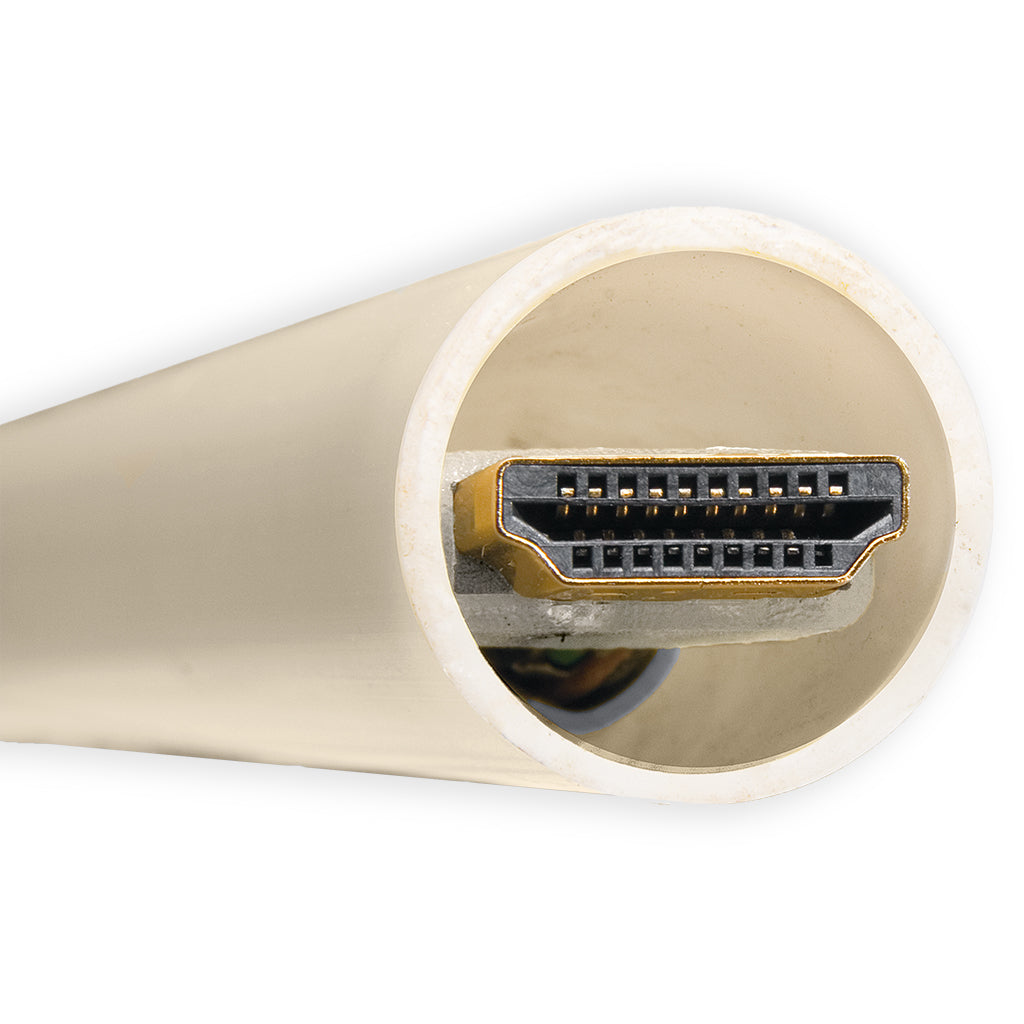

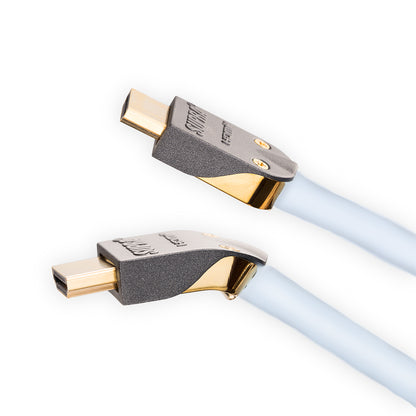

With the addition of our smart contact Supra Met-B/S, the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.

 SUPRA HDMI Features & benefits

  • Transmits today’s challenging formats flawlessly
  • Future proof - Meets today’s HDMI standard and known requirements of tomorrow
  • Sturdy design - Withstand the normal installation abuse
  • up to 23AWG leads - For minimum losses
  • Triple screen technology - Provides for long distance clearance hence freedom of installation with maintained signal integrity
  • Made in Sweden, three step quality plan - Unsurpassed quality and reliability


High resolution picture and sound

We often meet skepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.


SUPRA Ultra High Speed HDMI with Ethernet Cable (v2.1) in short:

  • TMDS Bandwidth: 48 Gbit/s
  • Color Depth: 48 bit (16 bit per color channel)
  • Maximal resolution: 8K/HDR 7680×4320@60Hz
  • Deep Color, x.v.Color
  • Auto Lip Sync
  • Dolby TrueHD, DT-HD Master Audio
  • 3D over HDMI
  • Audio Return Channel
  • Ethernet Channel

Technical Info



HDMI Features support  UHD8  HD5 HD5  HD5
Length: 1-5m  6-10m 12-15m  20-30m
sRBG YES YES YES YES
yCbCr or YpbPr @4:2:2/4:4:4 YES YES YES YES
blu-ray disc and audio full resolution YES YES YES YES
CEC YES YES YES YES
Deep color YES YES YES YES
xvYCC YES YES YES YES
Auto lip-sync YES YES YES YES
Dolby True HD capable YES YES YES YES
DTS-HD Master Audio cable YES YES YES YES
Updated listing of CEC commands YES YES YES YES
Ethernet channel (HEC) YES YES YES YES
Audio return channel (ARC) YES YES YES YES
Enhanced Audio return channel (eARC) YES NO NO NO
720 p YES YES YES YES
1920 x 1080p @ 30 Hz YES YES YES YES
1920 x 1080p @ 60 Hz YES YES YES NO
3840 x 2160 @ 24/25/30 Hz YES YES YES NO
4096 x 2160 @ 24 Hz YES YES YES NO
4k @ 30 Hz  YES YES YES NO
4k @ 60 Hz  YES YES NO  NO
4k @ 120 Hz YES NO NO NO
4k 4:2:0 YES YES NO  NO
4k 4:4:4 YES up to 6m NO  NO
8K 4:2:0 YES NO NO NO
8K @ 60Hz YES NO NO NO
Bandwidth: 48 Gbit/s 18 Gbit/s 18 Gbit/s 18 Gbit/s

Mechanical Specifications

Standard HDMI v2.1, Ultra High speed with Ethernet
Connection configuration Single-Link
Connectors HDMI-HDMI Met-S
Signal direction Bi-directional
Included HDMI connectors 2 x Supra Met-S (straight)
Additional connectors Supra Met-B (bent housing sold separately)
Applications e.g. Bluray/Projector/TV/DVD/TV-decoders
Max resolution per cable length interval in passive appliances

8K@60Hz w/ HDR: up to 5 meter


Solder tin Almit SR-34 Super

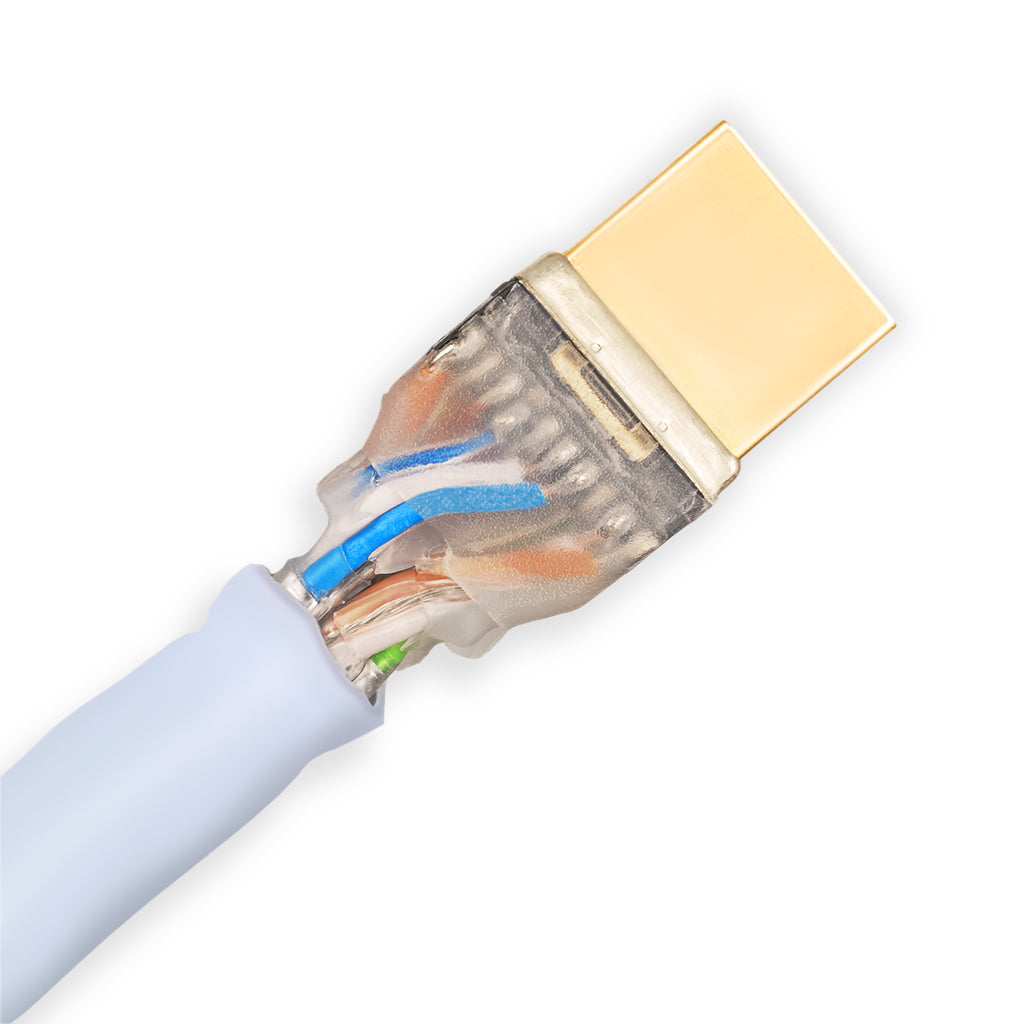

Cable clamping Molded connector body fitted in aluminium housing
Cable UHD
Lead area, 0.5 - 5m: 5xTMDS 0.128 / 26 (HD5/S) mm2 / AWG
Lead material Solid strand oxygen-free copper
Di-electric (insulation) Air-injected PE foam for minimal capacitance
Inner shield / coverage: Aluminized PET foil / 100 %
Communication leads (UHD8) 5 x 0.081 / 28 (di-electric: PE) mm2 / AWG
Outer shield / coverage: Aluminized PET foil and braid / 100 %
Jacket Heat an age resistant PVC
Flame retardancy: No, see FRHF Version
Cable outer dimension  7 mm

Electrical performance

Resistance Rev. Ohm / km
Capacitance Rev. pF / m
Characteristic impedance 100 Ohm
Velocity factor 0.8 x C (speed of light)
