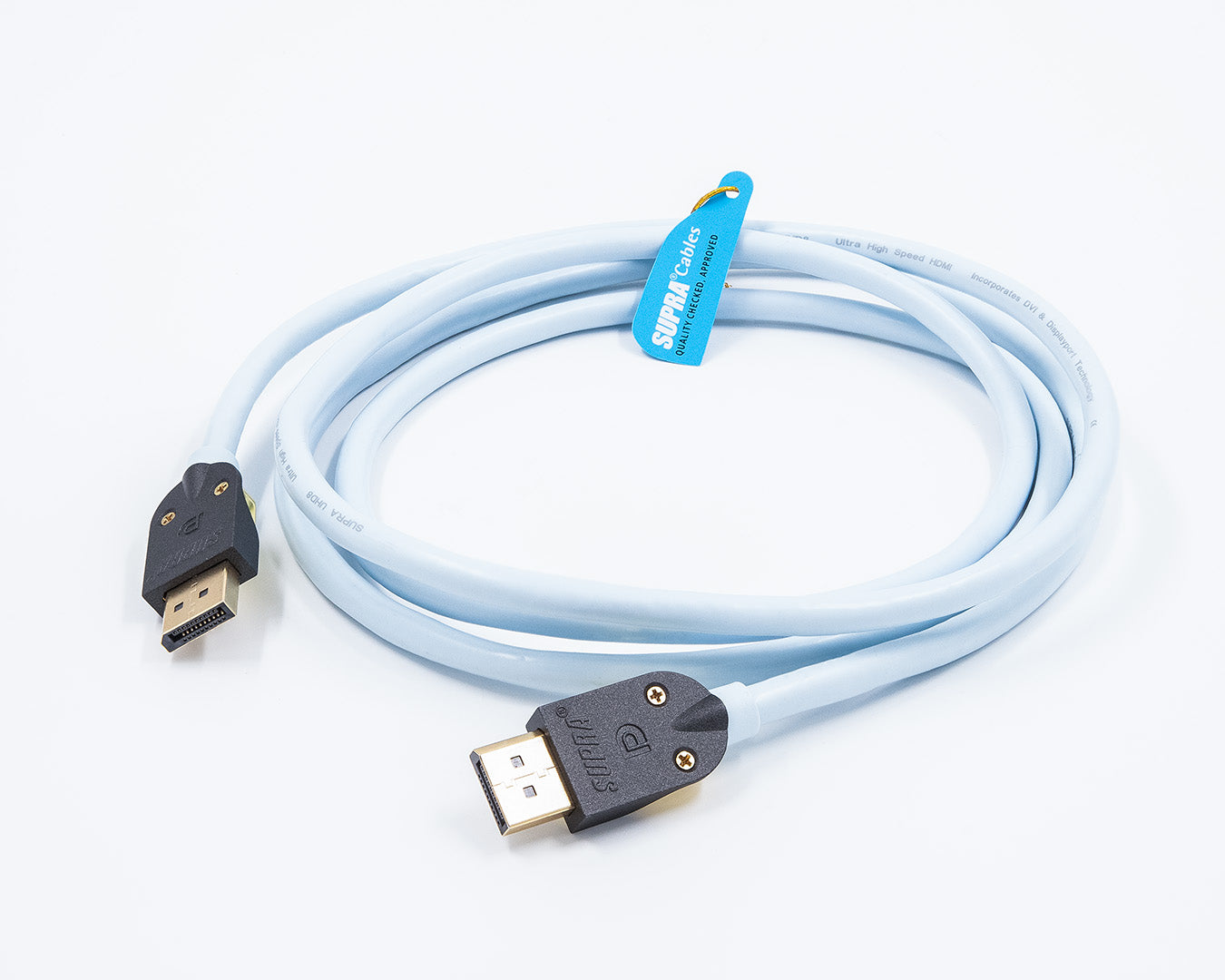

SUPRA HDR DISPLAYPORT 8K@144Hz DP-DP MALE

SUPRA HDR DISPLAYPORT 8K@144Hz DP-DP MALE

Regular price $115.00
Regular price Sale price $115.00
Sale Sold out
Tax included. Shipping calculated at checkout.

High Speed Supra DisplayPort cable MkII

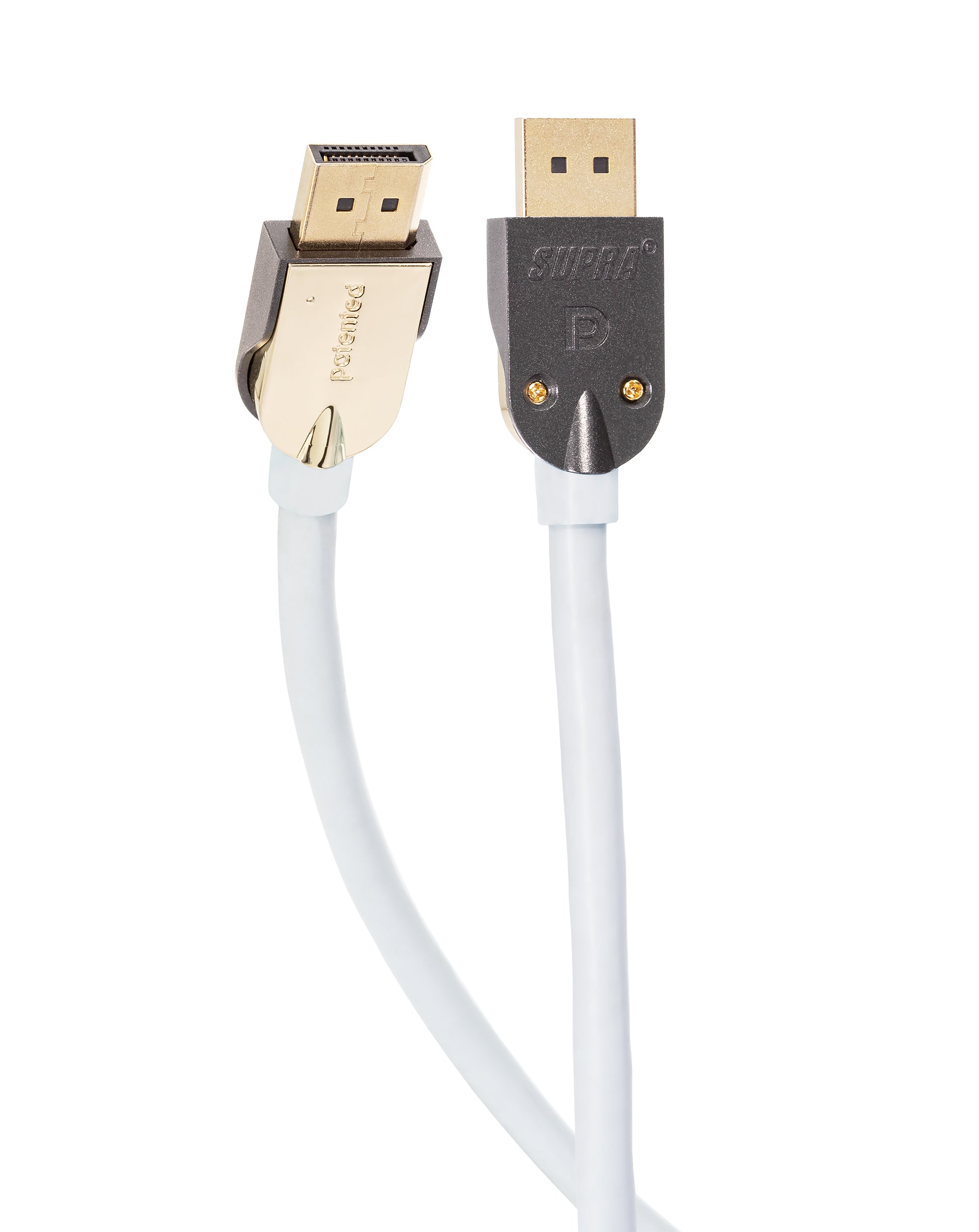

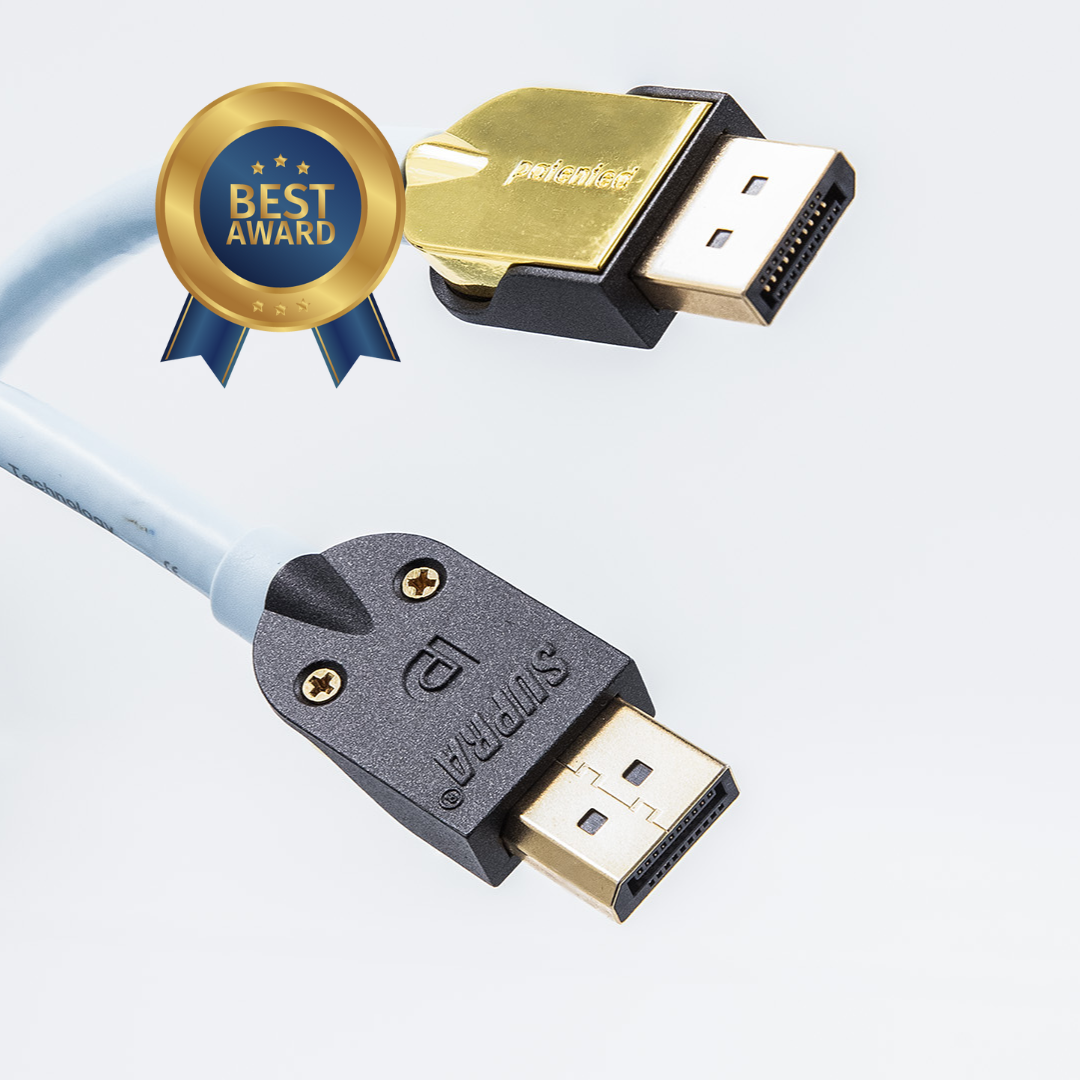

A very anticipated update of Supra DisplayPort cable is now launched. The DisplayPort is an interface for computer graphics which now reaches also projectors and begin to include TV sets. Our Supra proprietary 24K goldplated detachable connectors are robust and makes it possible to pull the cable through conduits pipes. And, off course, our highly appreciated and proven Supra UDH8 cable provides for lightning-fast, well shielded and accurate signal transmissions allowing any graphics to perform at its best.

All features of the DisplayPort interface is incorporated in our new cable and we are proud to now being able to supply photographers, film makers, 3D artists, drawing engineers, computer gamers, etc., a cable that will not slow down or blur video or pictures.

High resolution picture

We often meet skepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out/freezes. Many claim that if the screen shows, the signal is good enough. There is, however, circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates. You might experience sync problems (delays, freezing video moments), distorted colorations, insufficient blackness, noise and other unexplainable artefacts during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using Supra digital video, audio, computer and graphic cables and both you and your equipment will be able to fully enjoy/display the show. We let e.g. an American independent accredited HDMI test-center validate that our claim of excellence are true.

Technical Info

Mechanical Specifications

Standard DisplayPort
Connection configuration Single-Link
Signal direction Bi-directional
Applications e.g. Computer graphics, monitors, projectors and TV sets
Maximum resolution and refresh rates

1-3M: DP 1.4
8K 7680x4320@60Hz
4K 3840x2160@144Hz
2K 2560x1440p@165Hz


4-5M: DP 1.2
4K 3840x2160@60Hz
2K 2560x1440p@165Hz


Lead area 5 x TMDS 0.128 / 26 mm2 / AWG
Lead material Solid strand 5N oxygen-free copper
Di-electric (insulation) Low density, air-injected PE foam for minimal capacitance
Inner shield / coverage Aluminized PET foil / 100 %
Communication leads 5 x 0.081 / 28 mm2 / AWG
Di-electric (communication leads) PE
Outer shield / coverage Aluminized PET foil and 5N OFC braid / 100 %
Jacket Heat and age resistant PVC
Flame retardancy: No, see FRHF Version
Outer dimension 7 mm
Packaging/bobbin 500 meter



Electrical performance - Supra HD5/S

Resistance Rev. Ohm / km
Capacitance Rev. pF / m
Characteristic impedance 100 Ohm
Velocity factor 0.8 x C (speed of light)
