SUPRA LoRad 3x1.5mm Cable - Furutech Figure FI-8N Plug (C7) Power Cable

SUPRA LoRad 3x1.5mm Cable - Furutech Figure FI-8N Plug (C7) Power Cable

Regular price $235.00
Regular price Sale price $235.00
Sale Sold out
Tax included. Shipping calculated at checkout.

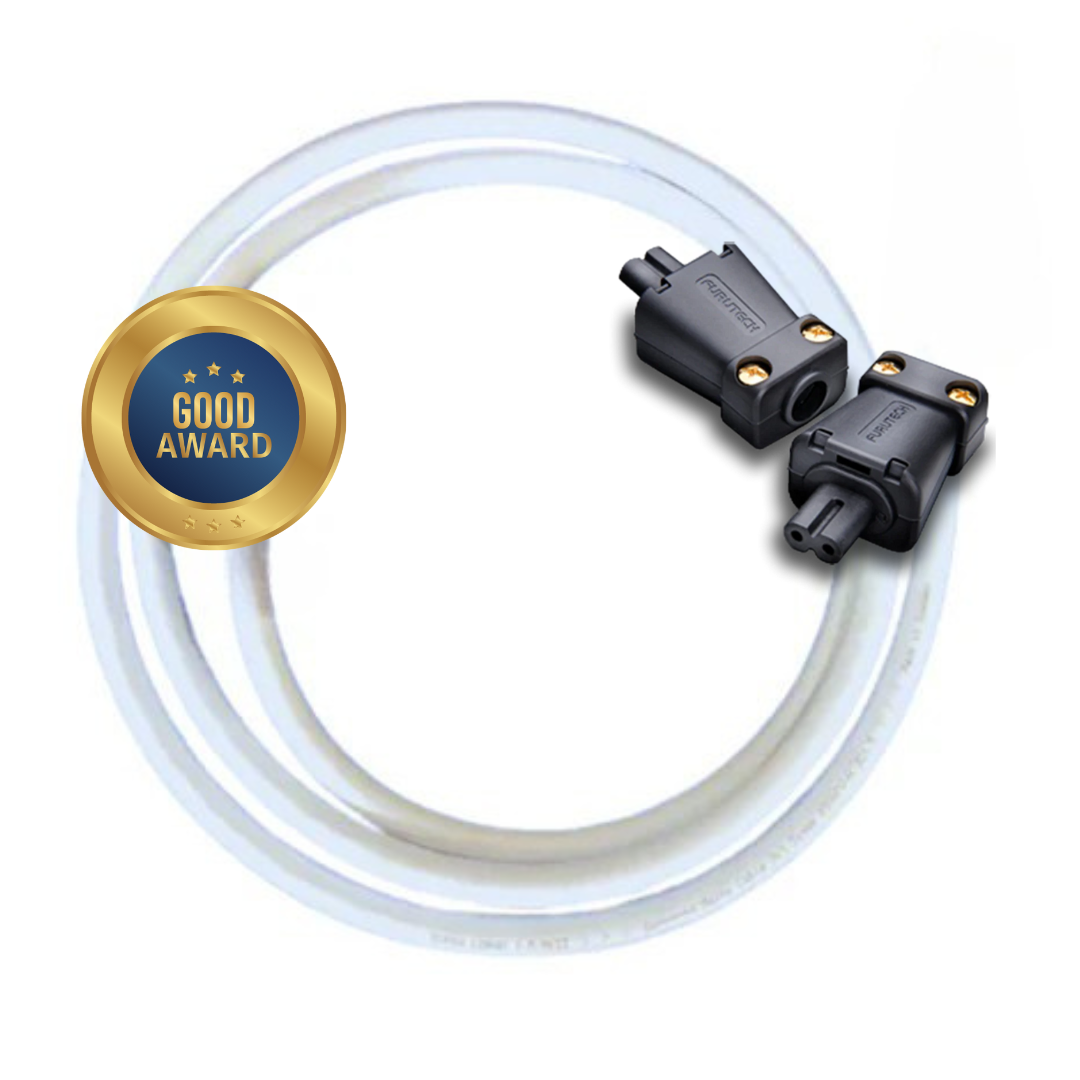

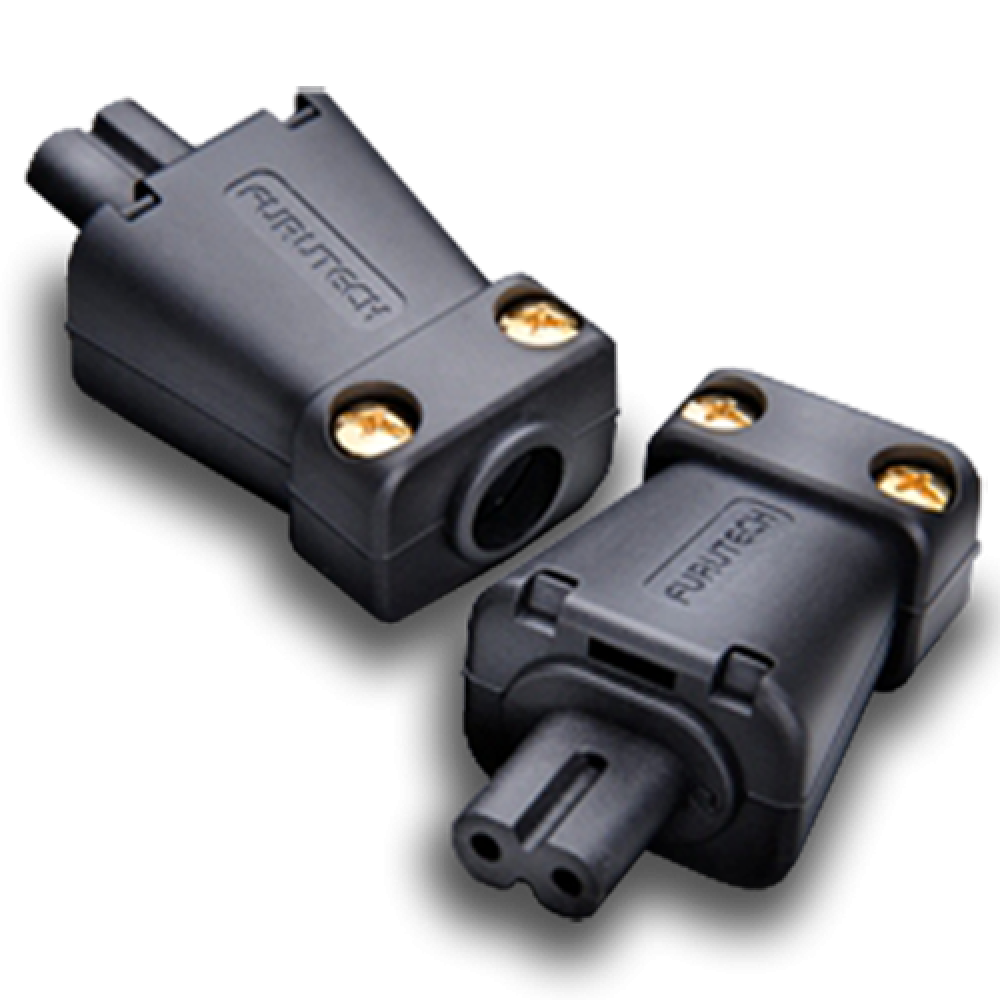

Supra LoRAD 3 x 1.5mm Fully Shielded Earthed Mains Cable fitted with Furutech FI-8N Gold or Rhodium Figure 8 Plug.

Ideal for any components with figure 8 plug where RFI reduction is desired. CD Players, DACS, Tuners, etc. The benefits of reduced noise and this high end Furutech plug will become obvious immediately upon installation.

If you want to both see and hear what a reduced mains noise floor will do for you, check out the über-shielded, Supra LoRad mains cables and the Supra LoRad 6 Plug Fully Shielded Aluminium Mains Blocks as well. The combination of Supra's fully shielded LoRAD range provide a synergy of performance enhancement across your whole system.

Any length available to order, just ask and can run an auction to suit your requirements.

LoRad protects both from alternating fields radiating from the cable as well as from pick-up of surrounding airborne noise fields, e.g. wireless and mobile phones, wifi, radio and TV broadcasts, etc.

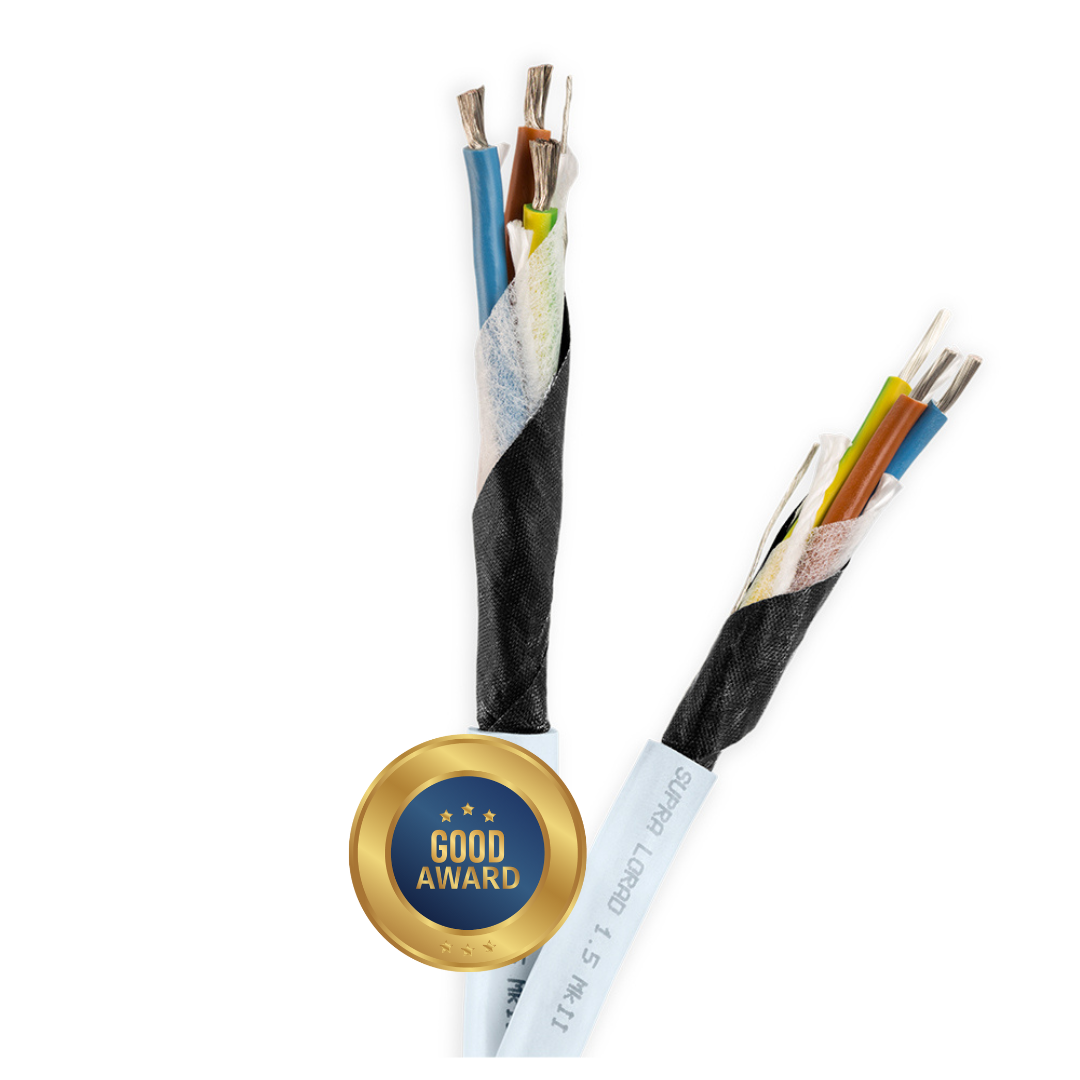

In addition to the physical shield incorporated in the cable design, the leads are spun in a short pitch, counteracting the magnetic alternating field that according to the physical law of inductance always surrounds a lead that carries a current.

The benefits are less noise picked up by the cable, less noise caused by the cable inside and less noise that infect adjacent cables such as low level interconnects. You will notice cleaner sound, pronounced transients, richer fine details and an improved 3D soundstage.

LoRad MkII is tested and certified by Intertek Sweden, meeting the European safety regulation HD21.5 S3.

The cable must be connected to a wall socket with a ground terminal for the full LoRad effect.

TECHNICAL INFO

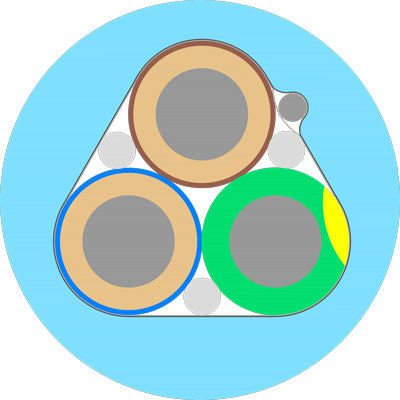

Mechanical data

Standard Mains power flex with ground lead and high-end shield
Leads 3 x 1.5mm2, tin plated 5N oxygen-free copper
Number of strands 204 pieces
Strand dimension Ø 0.10 mm
Di-electric (insulation) Dual layer PVC. Lead identification; green/yellow, blue & brown.
Number of fillers/armoring Yarn, 3 pieces
Shield interconnection to ground Drain wire, ultra flexible, tin plated, 66 strands x Ø 0.07 mm OFC.
Armoring and insulation Woven polyester tape
Shield Woven semi-conductive Carbon/Nolyn tape
Jacket Age and heat resistant PVC
Outer dimension Ø 9.2 mm



Electrical properties

Resistance / conductor 10.8 Ohm / km
Nominal voltage 110 - 250 Volts
Maximal continuous current 10 Ampere
