SUPRA LORAD MDO1 - MAINS POWER DC-BLOCKER V 3.1 - HIGH END FILTER - AUS/NZ

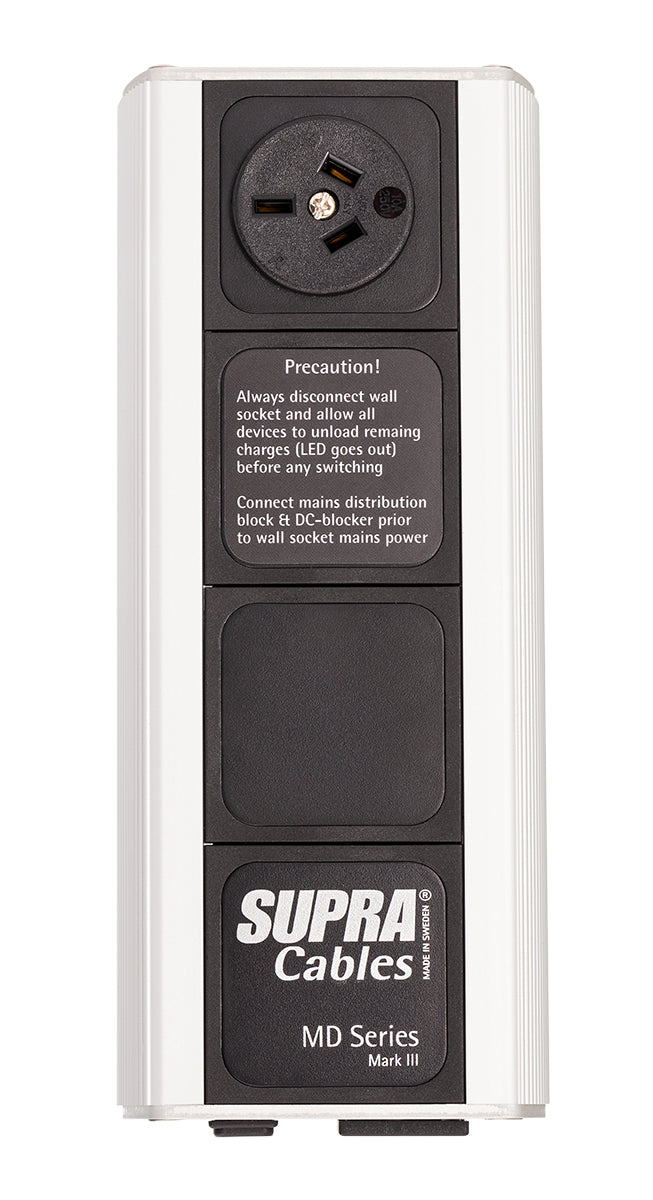

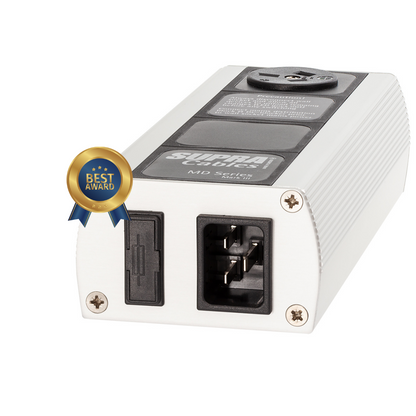

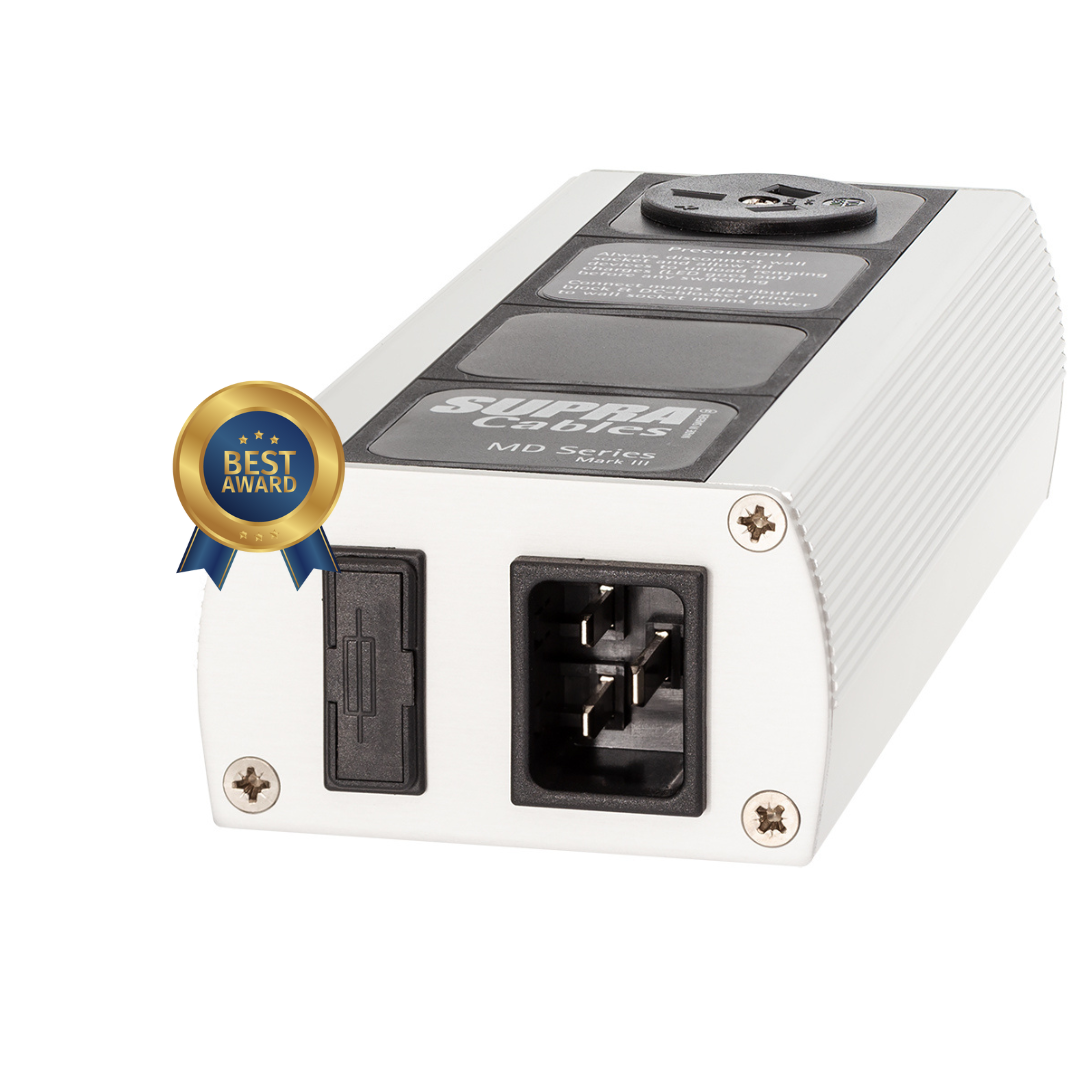

Supra LoRad MD01-16-AU/NZ MK 3.1 - DC Blocker for Mains AC

DC voltage derives from a number of modern electrical appliances and will cause an offset on to the alternating mains power sine waves. This offset is the result of an electric asymmetry that does not equally load the AC positive and negative sine wave. In the ideal mains power supply there should be no DC-offset at all.

Supra Cables is leading the way by offering a very efficient DC-blocker stopping DC up to 3.6 Volt

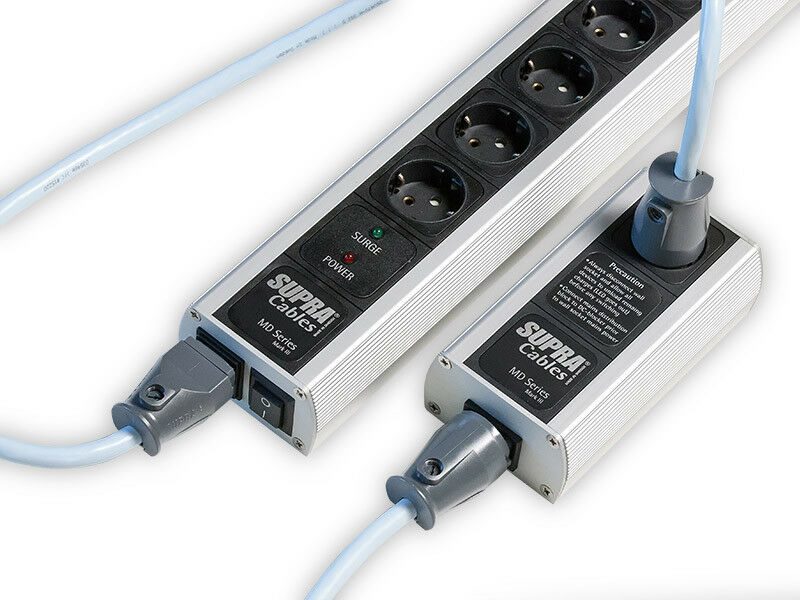

It is very easy to add-on to your existing power feed. It does not require protective ground to operate, (but we strongly recommend it)

Your equipment will sound much better and all other Supra mains power devices in the LoRad product range will operate under better conditions.

Mk3.1 with improved electronics and circuit board.

To improve the performance further, we have increased from 2 capacitors to 4 of 33000uF each. To make room for the the new components, we had to extended the DC-blocker chassis by 52mm. To reduce ferromagnetic losses, we have replaced all electronics to components with Copper legs. Mk3.1 is faster, better and provides even cleaner power.

Features and benefits

Removes DC from AC mains - Silence noise floor substantially Tighter bass reproduction - Outstanding beat from drums, bass Reduces transformer hum Reduces power supply heat dissapation Filters up to 3.6 VDC No dampened dynamics Correct reference voltage - Substantially reduced harshness from DAC chips

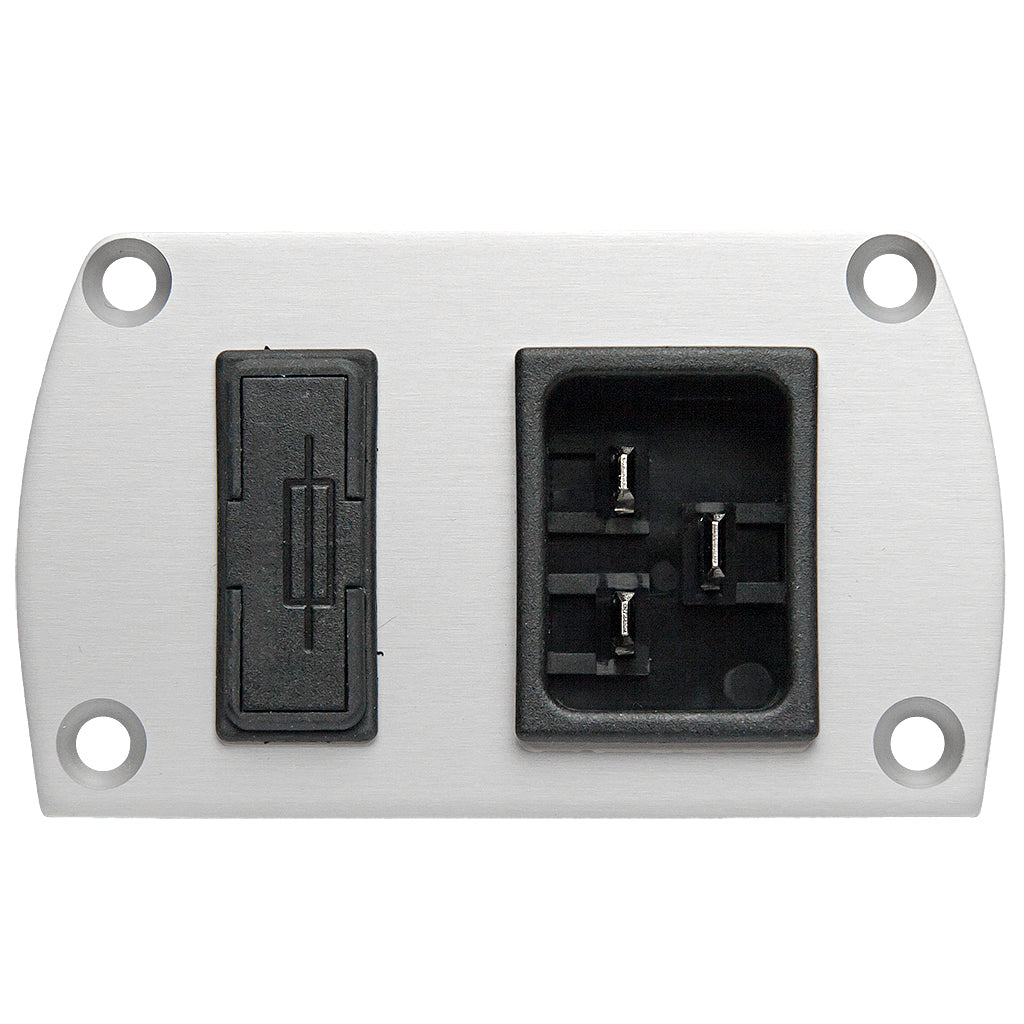

It is rated 16 Amp and allows for 3,680 Watt of peak power. The connection cord is optional, we recommend our Supra Lorad Mains Cord rated 16 Ampere for optimal operation. (the DC-blocker input is a C:19 IEC 320 rated 16 Amp)

The filter will not dampen dynamics, in contrast, bringing down the noise from the equipment will increase dynamics substantially.

Made in Sweden!
