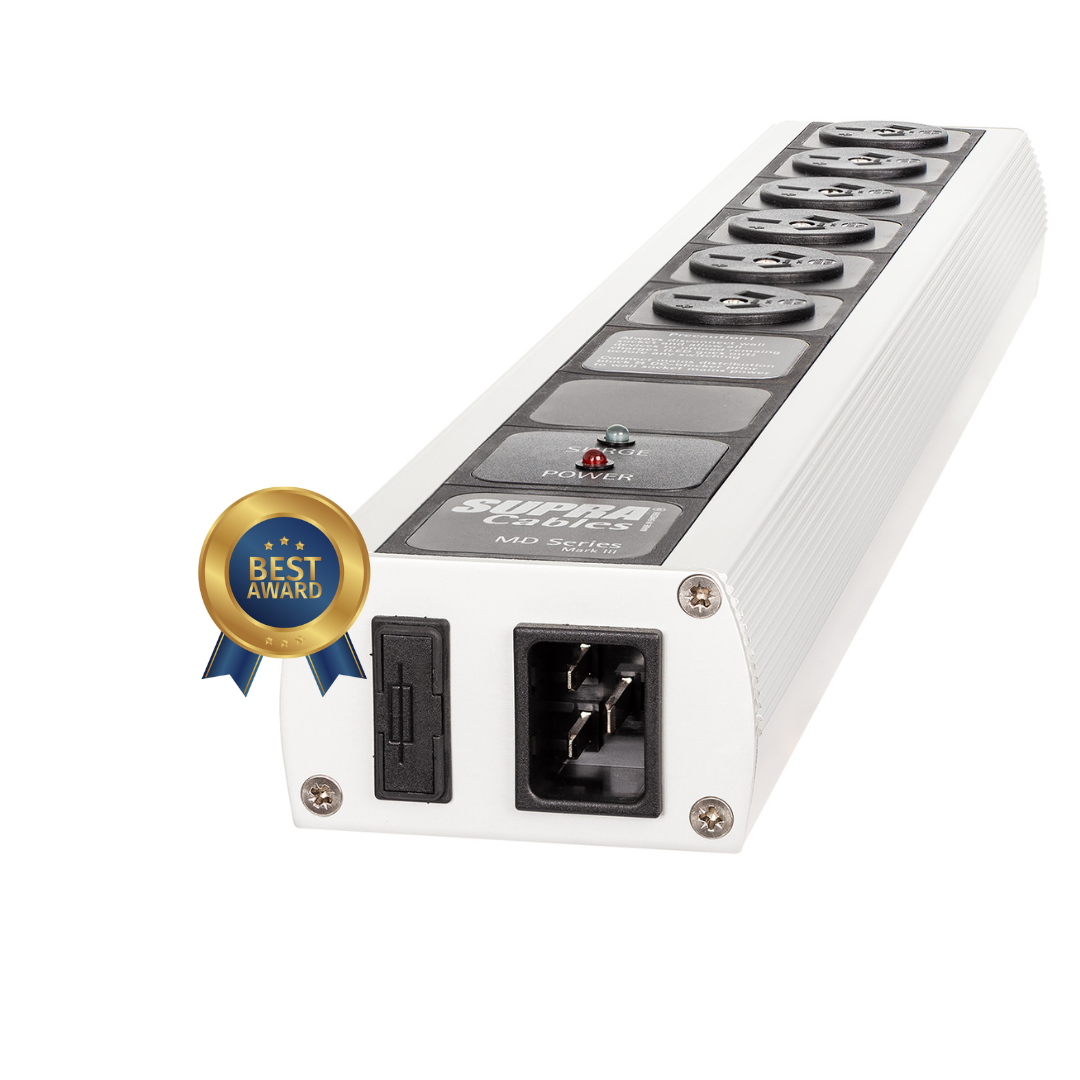

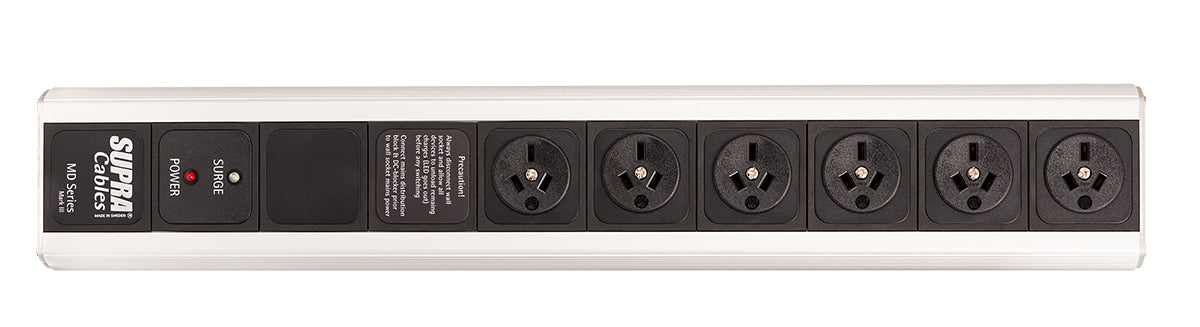

SUPRA MAINS POWER BLOCK MD06DC-16-AUS/SP- 6 WAY DC BLOCKER, FILTER, SURGE PROTECTION

Supra LoRad MD mains blocks are designed to shield and filter noise and protect the electronic gear from surges and DC (Direct Current) on the mains power.

(Also available in 8 outlet version with 2 high current Non Filtered outlets.)

The NIF-filter (Non-Intrusive Filtering, courtesy of Ben Duncan Research in UK) is a mild RFI filter damping the high frequency noise from all modern household sources.

DC is a result of the increasing number of household appliances that load the AC mains power asymmetrically, introducing a small (0.5 – 3 Volts) but highly malicious DC component.

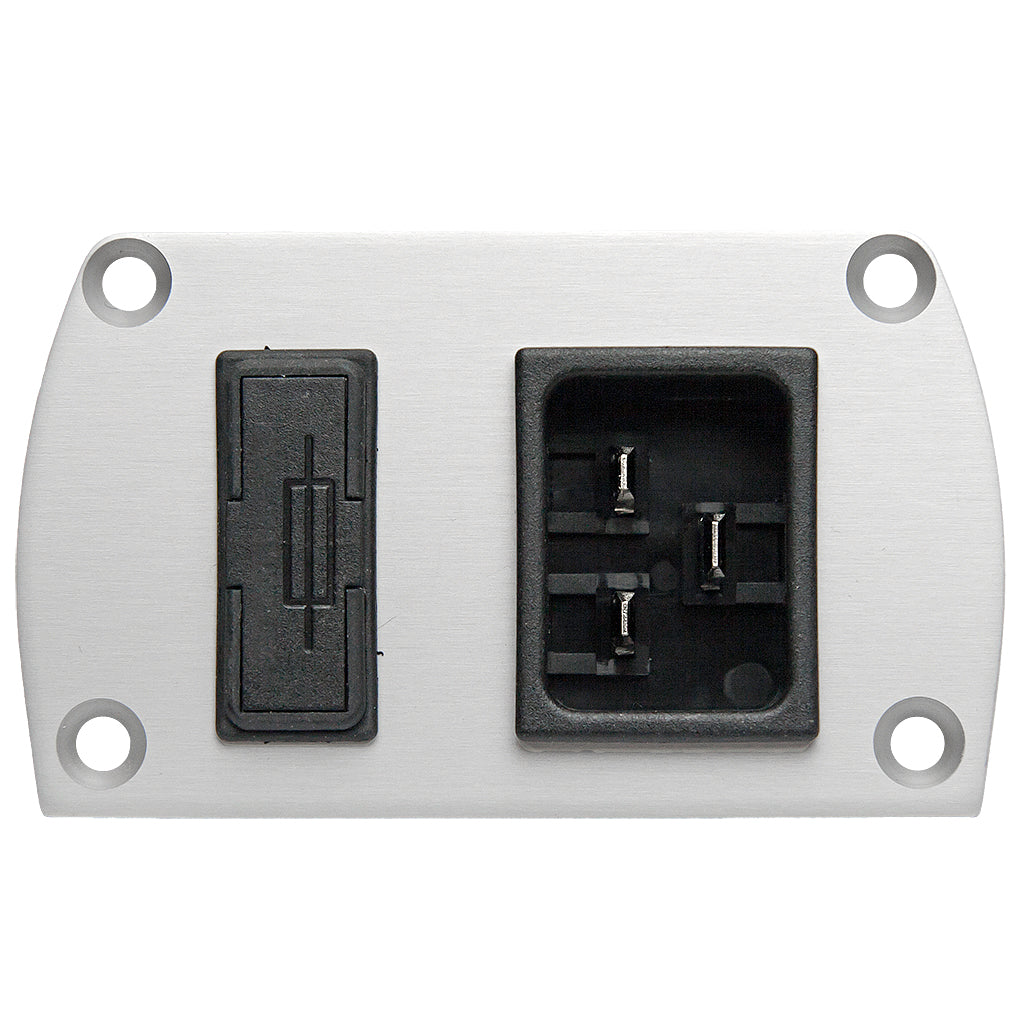

It is rated 16 Amp and allows for 3,680 Watt of peak power. The connection cord is optional, we recommend our Supra Lorad Mains Cord rated 16 Ampere for optimal operation. (the DC-blocker input is a C:19 IEC 320 rated 16 Amp)

Our high-end three-way surge protection is designed to shunt high voltage peaks/transients from harming your Hi fi gear. Aluminum is a very potent magnetic field insulation. Our mains block as well as adjacent devices is efficiently shielded from both electric, electro-magnetic and magnetic fields, a much wanted property where there is high currents rushing.

Customer benefits

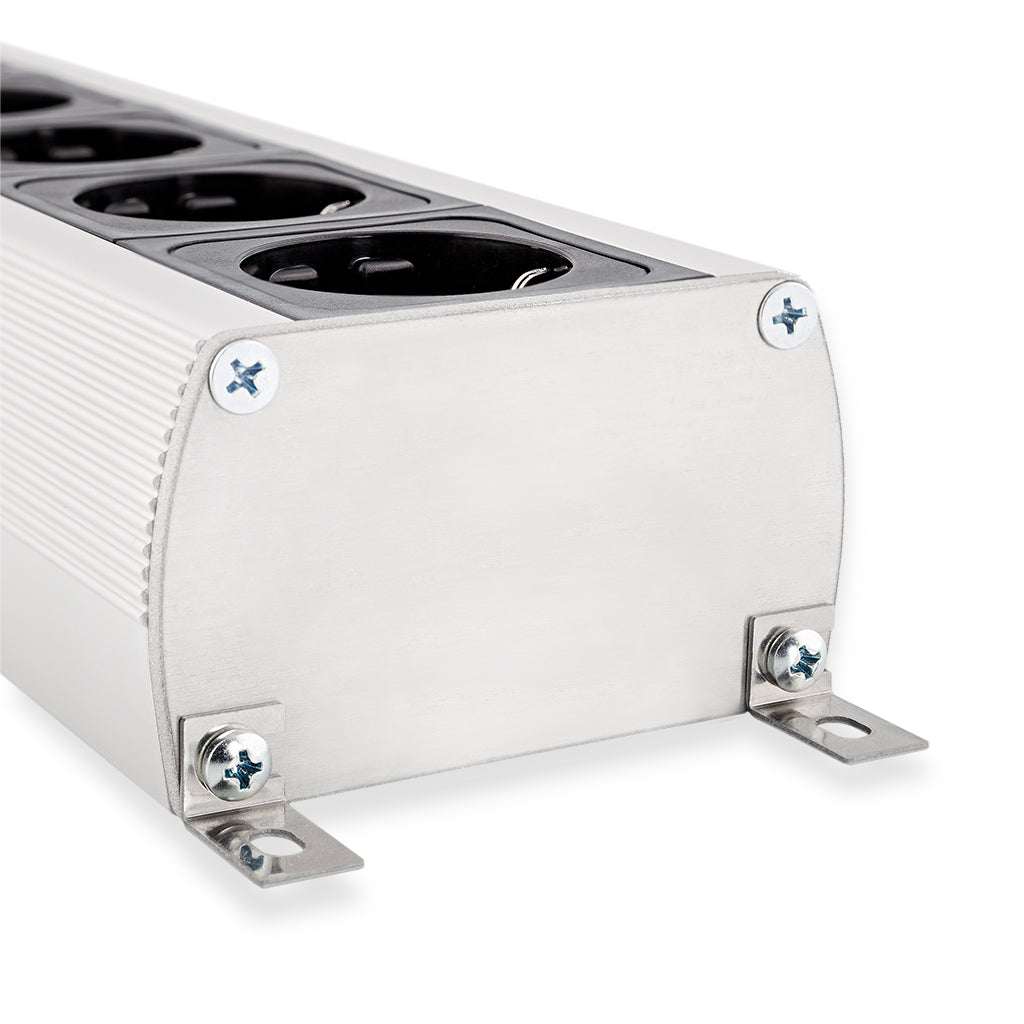

Noise damping up to 40 dB! Nominally 3,6 Volt DC lift to prevent non-linearity, iron core saturation and heat NIF- and DC-filter works also without protective earth wall socket Plays out from a pitch black background offering all micro dynamics and sound stage Distinct and articulate bass reproduction NIF-filter slope increase for every socket from mains block feed connector First socket un-filtered Internal wiring of 2.5 mm2 oxygen-free copper leads Support a staggering peak power 3680 Watt @ 230 Volt and 16 Ampere Wall mounted or standing on a flat hard surface. Rubber feet and brackets included

Preserves and increases dynamics Lo Rad cord sets further reduce noise by 6-12 dB! Custom tailored NIF-filter from Ben Duncan Research in UK SP three-way surge protection rejects close perimeter lightning Shielded aluminum chassis prevents electric, electro-magnetic and magnetic fields
