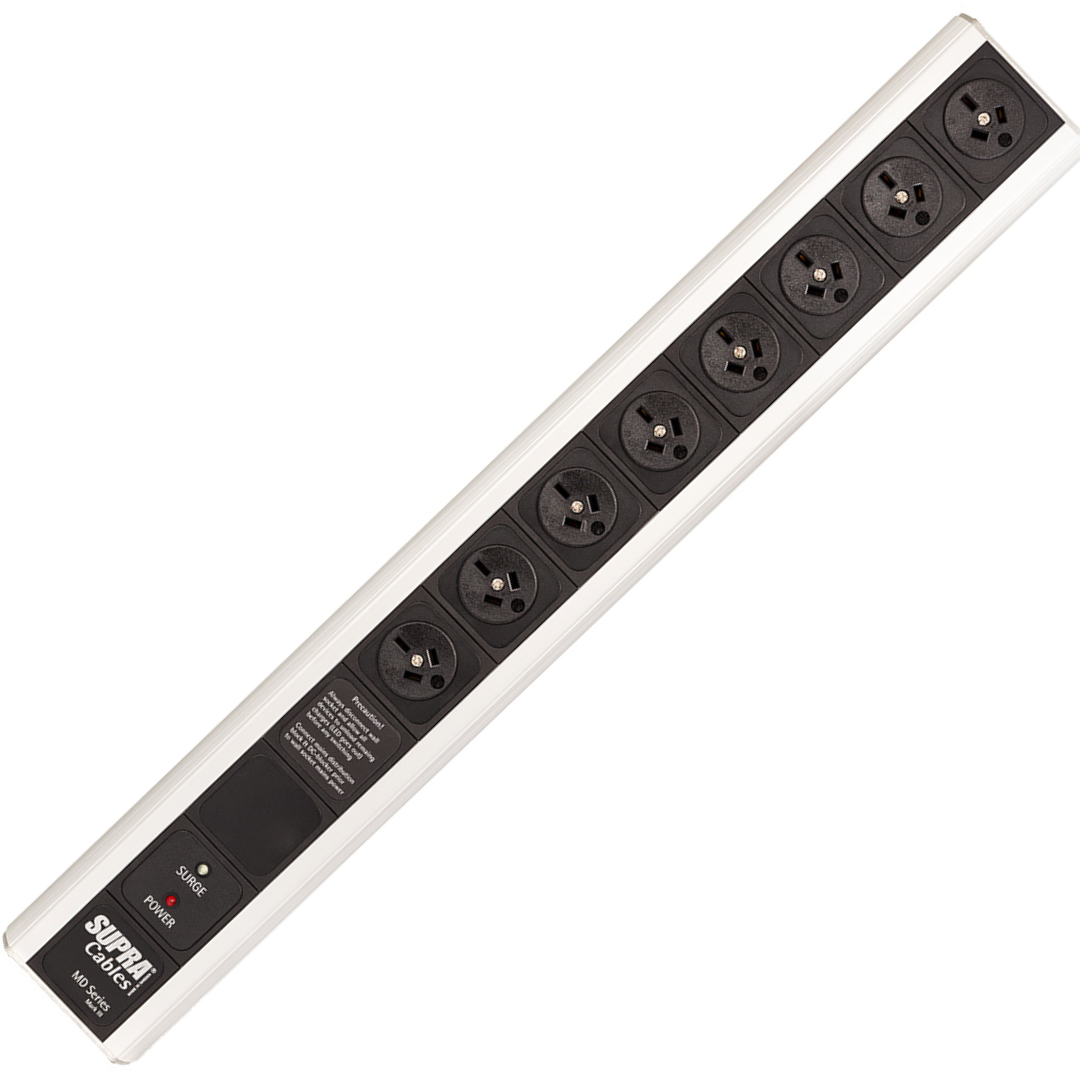

SUPRA MAINS POWER BLOCK MD08SP-NZ-AUS / SURGE PROTECTION

Supra MD08 Surge Protector AU/NZ Screened Mains block with 16A inlet & NIF-filter.

This requires a Supra power cable available in custom lengths - 16/20 AMP C:19 IEC required for Input Cable.

Aluminium fully shielded Mains Power block with 3 way Surge Protection and NIF.

Supra LoRad MD mains blocks are designed to shield and filter noise. Supra NIF (Non-Intrusive Filtering),
an efficient high frequency (RFI) transient filter. It is designed and configured to efficiently suppress RFI
interference, but not to dampen quick recharge demands from the connected devices power supplies. Supra
NIF is developed by Ben Duncan Research in England. It is possible to order with custom configuration and have a capacity to suppress noise floor up to 40 dB! The Aluminum chassis is a very potent
magnetic field insulation, why our mains block as well as adjacent devices is efficiently shielded from both
electric, electro-magnetic and magnetic fields, a much wanted property where there is high currents rushing.
All parts are made in Sweden or Germany & assembled in our factory in Ljungskile, Sweden.
• Noise damping up to 40 dB!
• Internal wiring of 2.5 mm2 oxygen-free copper leads
• Support a staggering peak power 3250 Watt @ 230 Volt and 16 Ampere
• Protect both you and your gear from various alternating fields
• Wall mounted or standing on a flat hard surface. Rubber feet and brackets included
• Custom tailored NIF-filter from Ben Duncan Research in UK
• Shielded aluminum chassis prevents electric, electro-magnetic and magnetic fields

SPECIFICATIONS

Chassis: Aluminum
Standard: AUS/NZ Standard

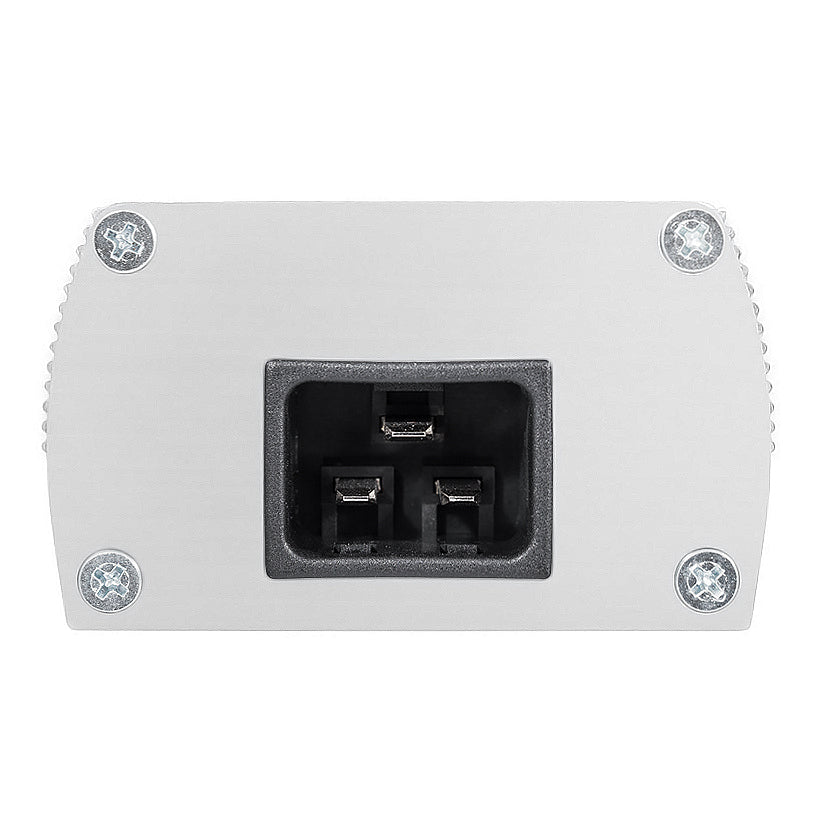

Inlet socket: SUPRA MCH-16, 16A, fuse 13A
Outlet sockets: 7 to 11 x SUPRA MCH-13 AUS/NZ
Rated Current/Voltage: 13A / 250V / 3250W
Max RFI Noise damping: 40dB
Width & height (WxH): 90x50mm
Length (L): MD07-16 = 837mm + 52mm for each additional socket
Standard filtering: No NIF-filter for outlet no 1-2
 Increased filtering, the last socket got highest damping
All mains blocks can be ordered with or without filters for any of the sockets.
Power Amps are recommended to be connected to an unfiltered outlet.
Connect the Mains block with a LoRad cord set (16A) further reduce noise by 6-12 dB!

Note! 16A Inlet  13A Fuse
