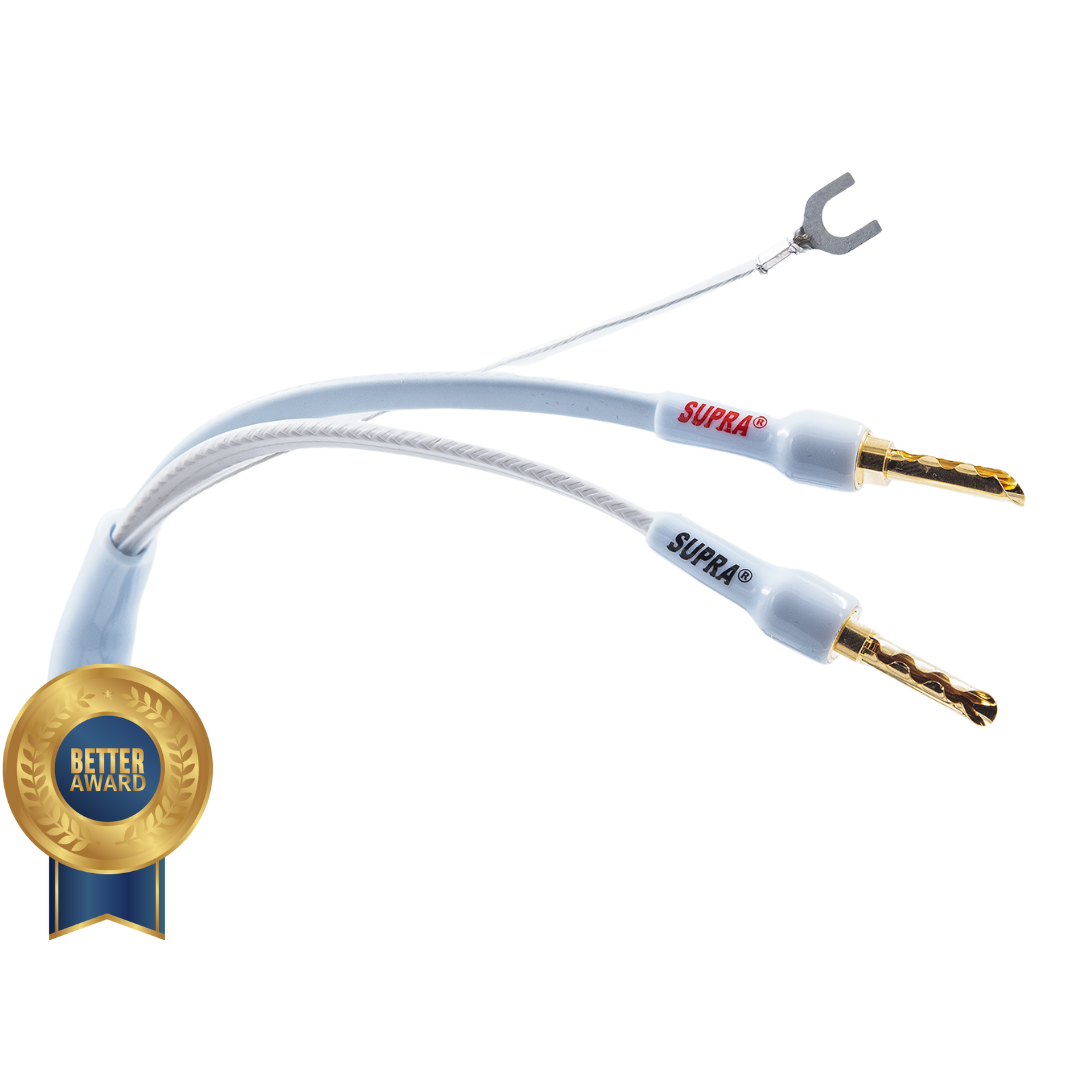

SUPRA PLY 2 X 3.4S COMBICON TERMINATED SHIELDED SPEAKER CABLE
SUPRA PLY 2 X 3.4S COMBICON TERMINATED SHIELDED SPEAKER CABLE
Supra Ply combines low induction and tin plating which provides for explosive dynamics. The shielded Ply 3.4/S provide even better performance when this model's added screen earth lead is connected to speaker minus terminal or to the earth terminal in a wall socket or mains distribution block. This version have also been pre-terminated with our finest connectors Supra CombiCon, allowing you to choose between banana/BFA or fork over and over again as your need changes. Ply is a multi-award winner and one-of-a-kind quality cable from Supra Cables.
Supra Shielded Speaker Cables
Supra shielded cables both radiate and pick-up less noise compared to non-shielded. When installation environment gain from maximal noise immunity, Supra shielded speaker cables is the perfect choice.
The result is immediately lowered noise floor and increased dynamics of the Hi-Fi system. Especially the so called micro dynamics; tiny, tiny notes, phrasing, the small differences how hard the drum is hit, in fact all the small discrepancies making the music come alive and not sounding artificial will appear and suddenly stand out from a pitch black background, free from noise, a truly remarkable discovery for most music lovers.
The modern multimedia system is a potential hotbed for noise pick-up and signal degradation, without attention, the most prestigious Hi-Fi system will not even come close to its peak performance. It is as simple as that.
Secondly, we must consider how magnetic fields, alternating electrical fields, electromagnetic (radio-) waves, etc, affect us human beings. Whenever possible, we at SUPRA think it is worthwhile to consider lowest possible levels of fields and radiations surrounding us. SUPRA shielded cables radiate less malignant fields affecting us.

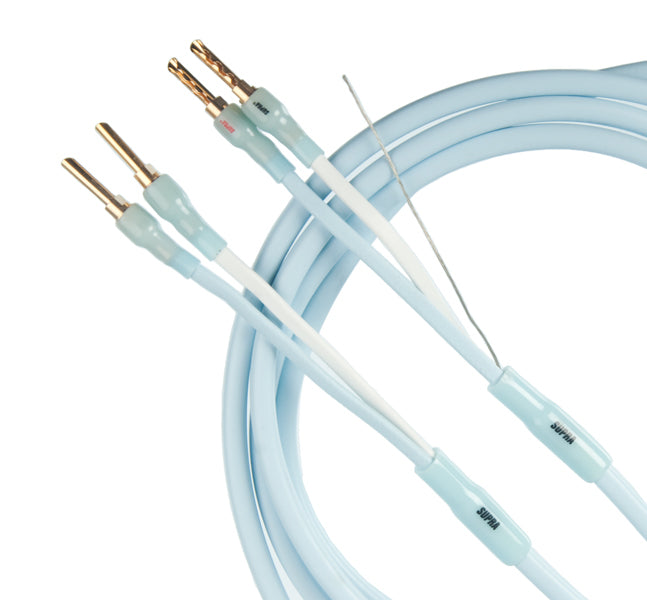

Terminated with Supra Combicon, Solid Copper, 24K Gold Plated Crimped Body connector and either Spades or Banana pins to suit your requirements.

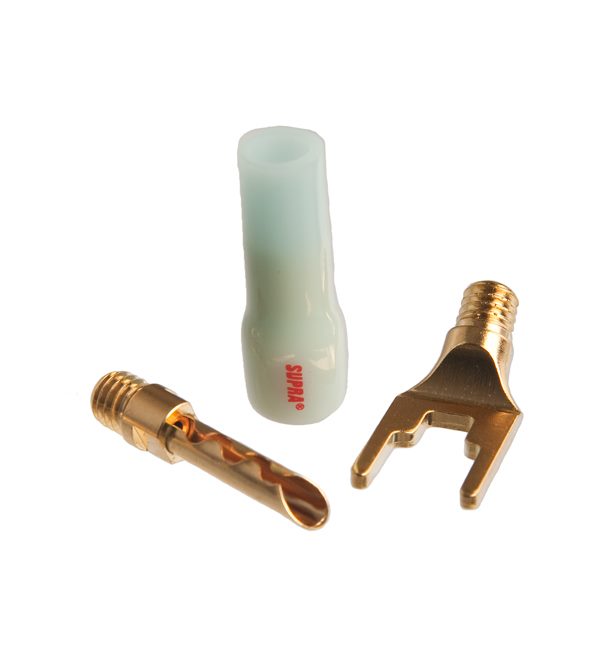

The CombiCon Connector (as used on the flagship Supra Sword cables)

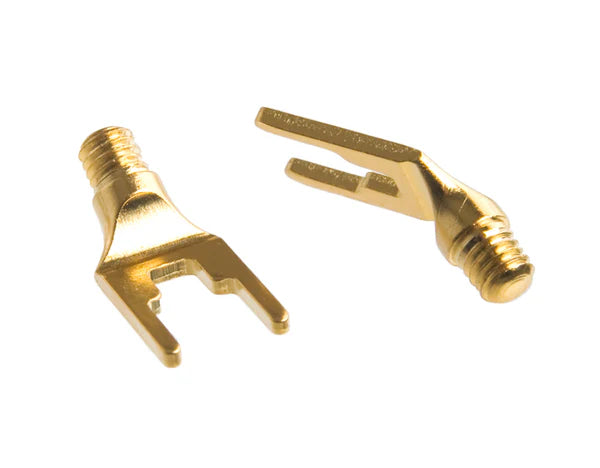

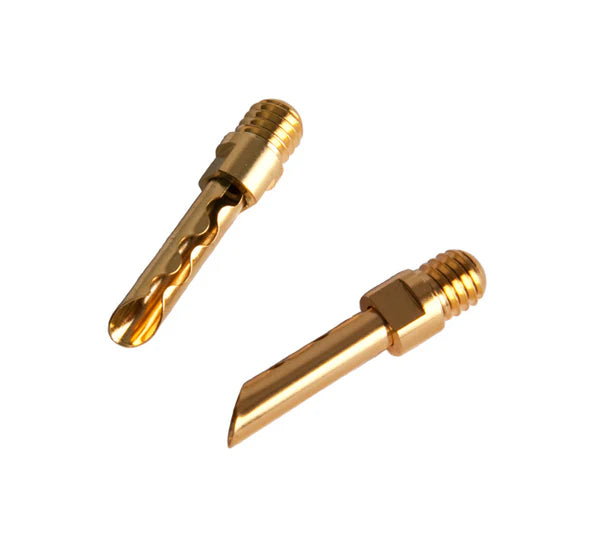

24K Gold Plated Copper connector crimp body with a M6 thread, a contact part which can be either a BFA/Banana or a Fork and finally a sleeve to finish up the perfect joint.

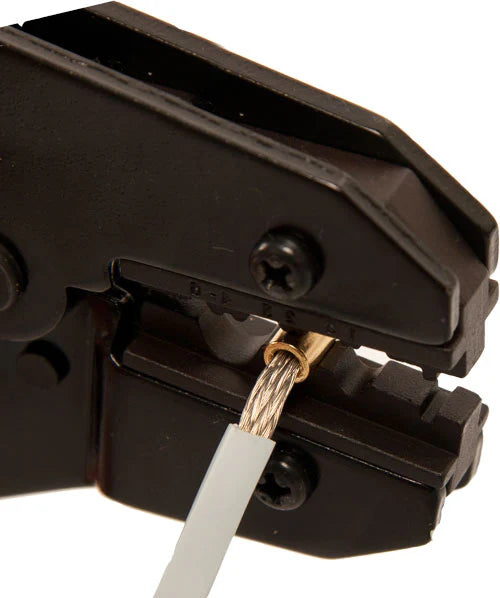

The crimp body is as said, crimped on to the cable strands forming an air tight connection, a very delicate junction between cable and contact.
Technical Info
Mechanical Specifications
Crossection area | 3.4 / 12 | mm2 / AWG |
Numbers of conductors | 3 (+ - and screen/drain wire) | pieces |
Numbers of strands per conductor | 192 | pieces |
Strand diameter | 0.15 | mm |
Conductor material | Tin plated oxygen free 5N Copper | |
Insulation and jacket | Heat and age resistant PVC | |
Screen | Tin plated oxygen free 5N Copper braid (120 strands, 0.15 mm strand diameter | |
Screen coverage | 95 | % |

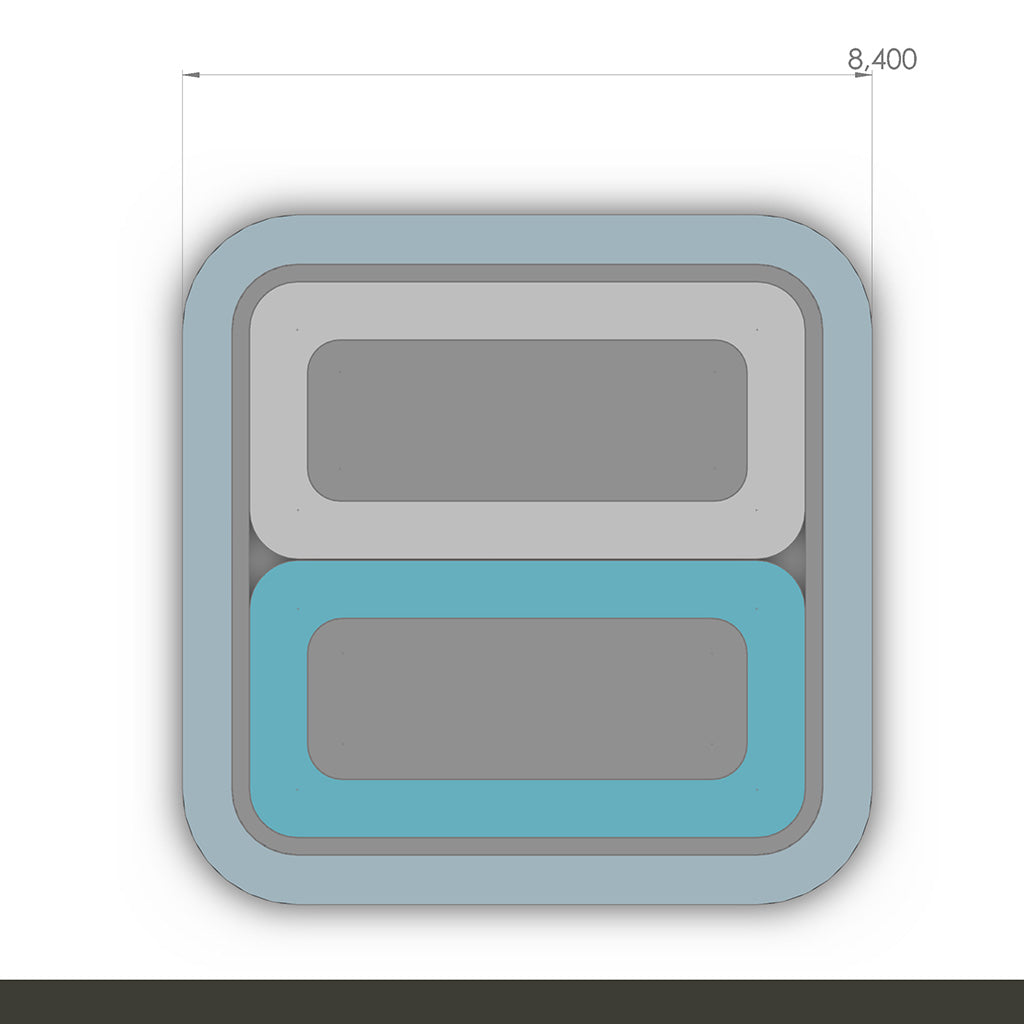

External size | 7.3 x 7.3 | mm |
Connectors
Banana/BFA | Included |
Fork (spade) | Included |
Cable connection | High pressure air tight crimp |
Electrical performance
Resistance | 5.1 | Ohm / km |
Inductance | 0.20 | µH / m |
