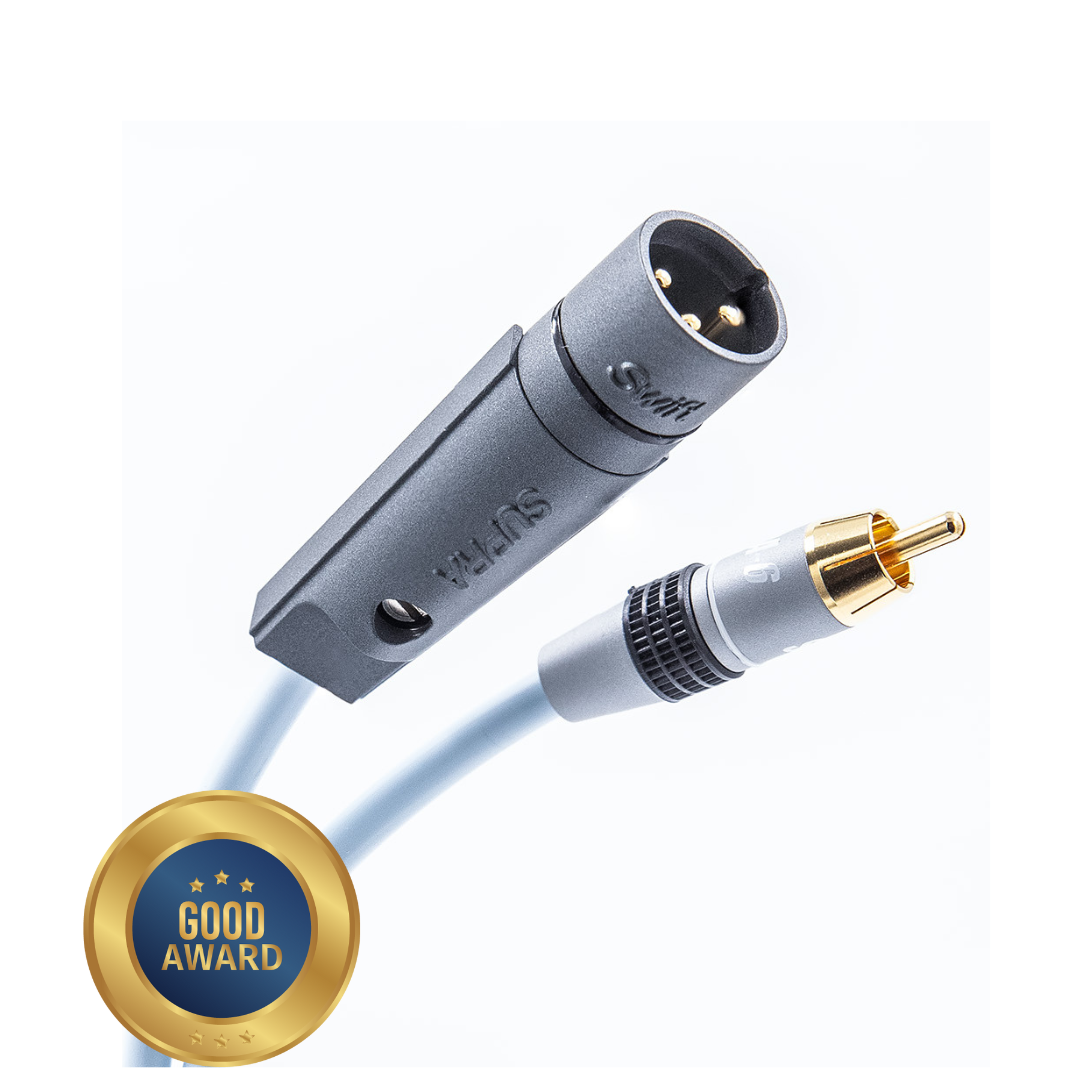

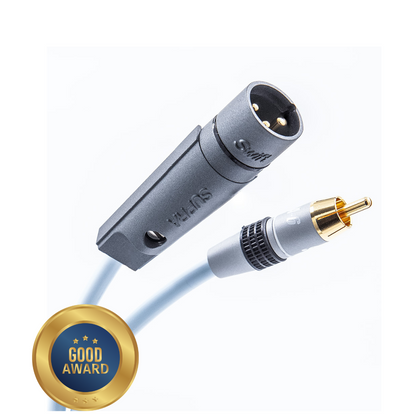

SUPRA SUB LINK 1RCA - 1XLR M AUDIO INTERCONNECT

SUPRA SUB LINK 1RCA - 1XLR M AUDIO INTERCONNECT

Regular price $120.00
Regular price Sale price $120.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Supra Sublink RCA-XLR/M - Single Channel Sub-Woofer Cable
For single channel connection between e.g. a receiver and an active sub-woofer (often called LFE channel = Low Frequency Effects) with balanced input and XLR chassis contact. Supra Sublinks low capacitance and high noise interference immunity make longer cable routing possible, which most often is the case for sub-woofer connections. Further the low capacitance allow bass pulse build-up without flattening or slow down, the really desirable property of an excellent hifi sub-woofer sound.

This cable may also be used to connect active speakers such as studio monitors with balanced input to a single-end source. The properties of the Supra SubLink is of a high standard also for full range purpose.

Features and benefits

  • Shielding - very silent from noise and microphony
  • Easy to install - fits also perfect in conduits
  • Low capacitance - Allows for bass pulse without flattening or slowing down
  • Robust connectors - Noise immune and gold plated for a long service life
  • ​Made in Sweden!

TECHNICAL INFO

Mechanical data

Number of leads 3 (+, - and earth) pieces
Lead area 0.24 / 24 mm2 / AWG
Number of strands per lead 19 pieces
Strand diameter 0.127 mm
Lead material Tin plated, oxygen-free, 5N copper
Di-electric (insulation) PE
Shield Aluminized PET foil
Jacket PVC
Outer dimension Ø 6.0 mm
Cable weight (without connectors) 48 g/m
Length 100 m/spole



Electrical properties

Resistance 72 Ω / km
Capacitance 52 pF / m
Velocity factor 0.66 x C (speed of light)
