SUPRA SWORD EXCALIBUR IXLR BALANCED ANALOGUE INTERCONNECT CABLES

Supra´s flagship high-end stereo cables have been upgraded and are now equipped with Rhodium quality connectors. SIMPLY THE BEST!

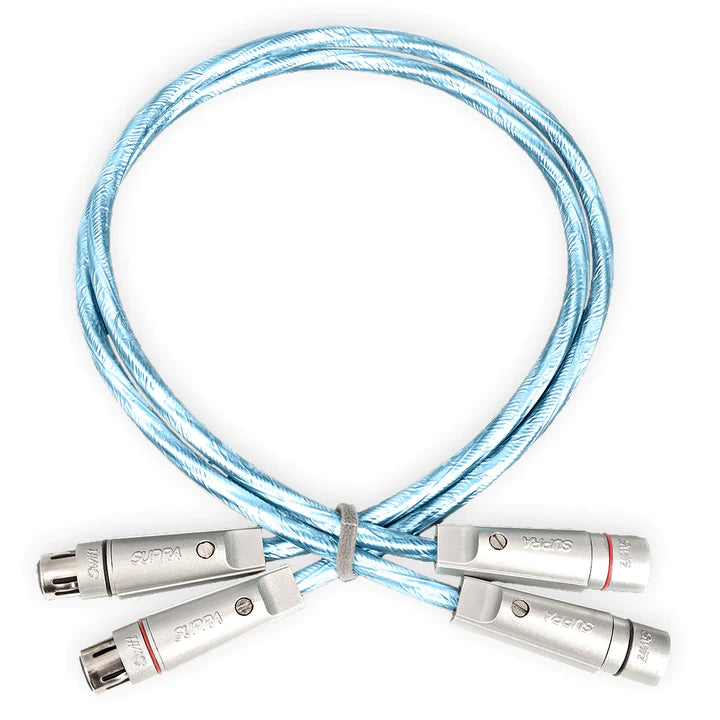

Sword-IXLR
One of our best analogue interconnect ever; Supra’s flagship. Sword–IXLR is an interconnect pair with our best balanced connectors Supra Swift. This cable possess the self-confidence of matching any audio systems from mid-end level and up, in fierce competition irrespective of the competitive cable price tag.

SUPRA Sword Interconnect - The High End
The success with the Sword loudspeaker cable lit an idea of designing an interconnect according to the same patented design concept. The cable works as a perfect signal carrier without the side effects of the traditionally designed cables, which display severe problems with frequency response and phase shifting. Sword maintain the signal integrity with almost immeasurable deformation due to our freedom and ability to master the electro-physical layout, instead of compensating with mystery boxes and batteries. It is hard to beat the Sword series, regardless of price. Available in single-ended (RCA) and balanced (XLR) version.

What does it sound like?
The best description is nothing - Supra Sword does not sound at all. Supra Sword passes the complex music signal of an infinite number of sine waves and an infinite number of levels without causing any deformations between the source output to the receiver input. No part of the music suffer delay (phase shift), why the timing of each tone are exactly the same before and after. If every other hifi device in the system is capable of equally correct timing and preservation of the recordings' sound, the speaker setup and listening room acoustics is optimal, the result is such alive you can truly imagine being in the studio among the musicians. The Sword's lack of electrical properties ensures complete transparency. It is sometimes harder to distinguish a transparent cable from a cable with an apparent "sound lift" that emphasize certain notes. One will soon know however, when each album in the music collection exhibits the same sound style rather than the unique signature of every album/tune.

The Sword Design

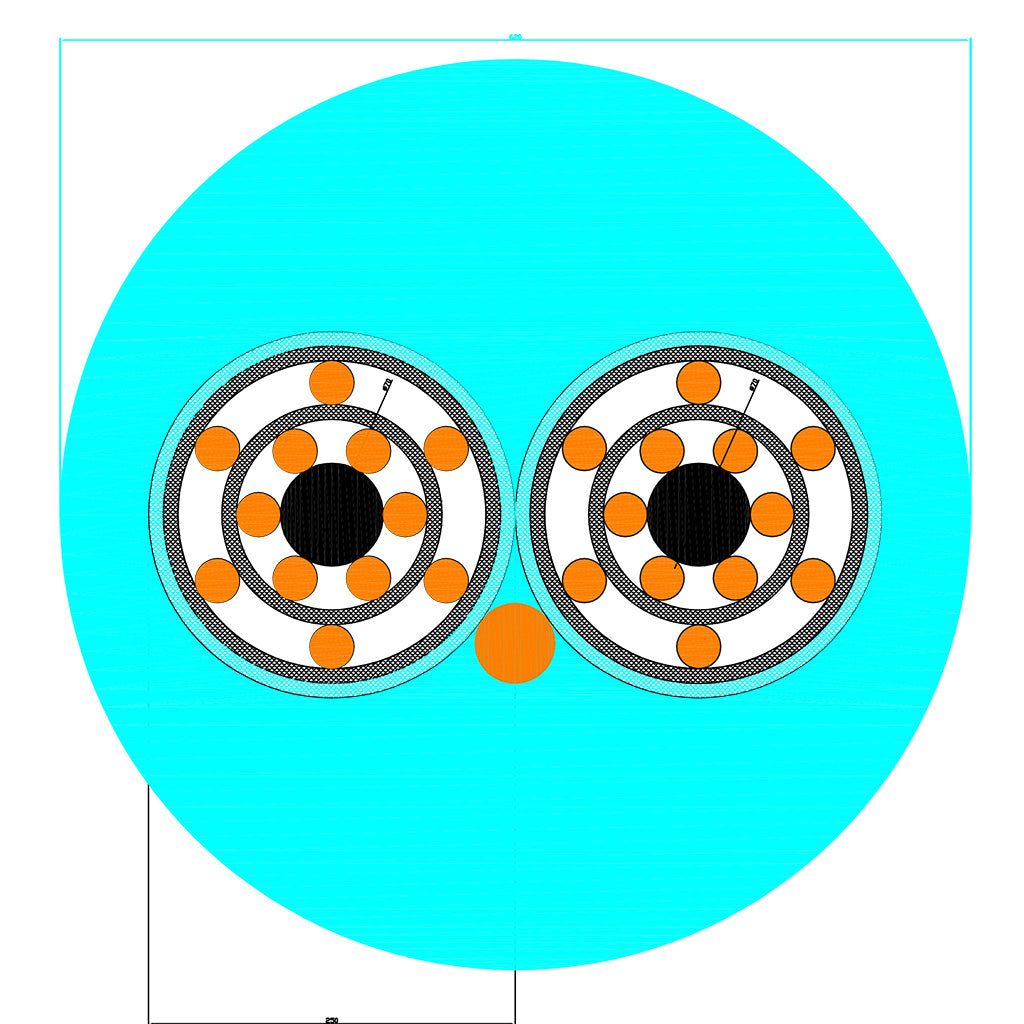

The picture illustrates the cable design. In each polarity conductor there are twelve individually insulated strands forming two layers, the inner six spun around an inner core, with high pitch in one direction, the outer six in the opposite direction separated from the inner layer by an extruded insulation layer. This strand orientation, efficiently counteracts all unwanted electro-physical properties, giving all audible frequencies uniform conditions internally and further, no open window for malicious noise to enter. The music will pass through sounding exactly the same. That is what distinguishes a completely transparent cable. Finally this version is balanced which adds a few extra bonuses that will help the entire system to additionally suppress noise and disturbances. Balanced transmissions, usually found in high-end hi fi systems and pro-sound/studios, connect earth potentials of system devices through the separate earth lead that also connects the cable shield to the same potential. Nowhere the dirt picked up in cable shields or device cabinets will infect the signal. One of the brilliant features is that hot and cold leads (pin 2 and 3) are mirror images of each other. When hot is maximum potential, the cold is maximum negative potential. In the receiver circuitry, the two signals are compared and all signals that differs equally between the leads is let through. A disturbance is however giving the same potential in both leads and will therefore be cancelled out. The result is dead silence from noise. Also in studios where long interconnects are used and a lot of devices are running.

Mechanical Specifications:
• Cross Area: 1.5 / 15 mm2/AWG
• Number of conductors: 2
• Wires / Cond: 6 + 6
• Wiredia: Enameled OFC
• Insulation: PE
• Screen Coverage: Aluminium / Pet Foil, 100%
• Jacket: PVC Crystal
• Ext. Size: 8 (mm)

Electrical performance:
• Resistance: 33 Ohm/km
• Phase Dislocation. 0.5-100kHz: 0.96 Deg.
• Phase Error: 0
