SUPRA XL ANNORUM BI-AMP - 4 X 1.6mm SPEAKER CABLES

Supra XL Annorum

High end loudspeaker cable with Banana/Spade - Bi Amp
Gauge: 4x1.6mm2 / AWG 15

• Rubber based jacket for minimal microphony pick-up
• Star Quad configuration - very low inductance
• Interchangeable connectors with M6 thread, banana/spade
• 24K gold plated Copper connectors

Supra XL Annorum is a speaker cable we are proud to announce as one of our 40^TH Anniversary offers. The name derives from playing with latin numbers and language where XL means -10+50=40 and Annorum is a bent form of Anno, latin for year, hence 40 Years. We take great pleasure in the fact that this cable is developed together with a renowned Swedish speaker designer famous for e.g. QLN speakers among others. The intention was a conductor lead for the internal wiring of drivers and cross-over filter. During the progress we acknowledged such good performance that the idea of having the conductors forming a complete speaker cable came to life.

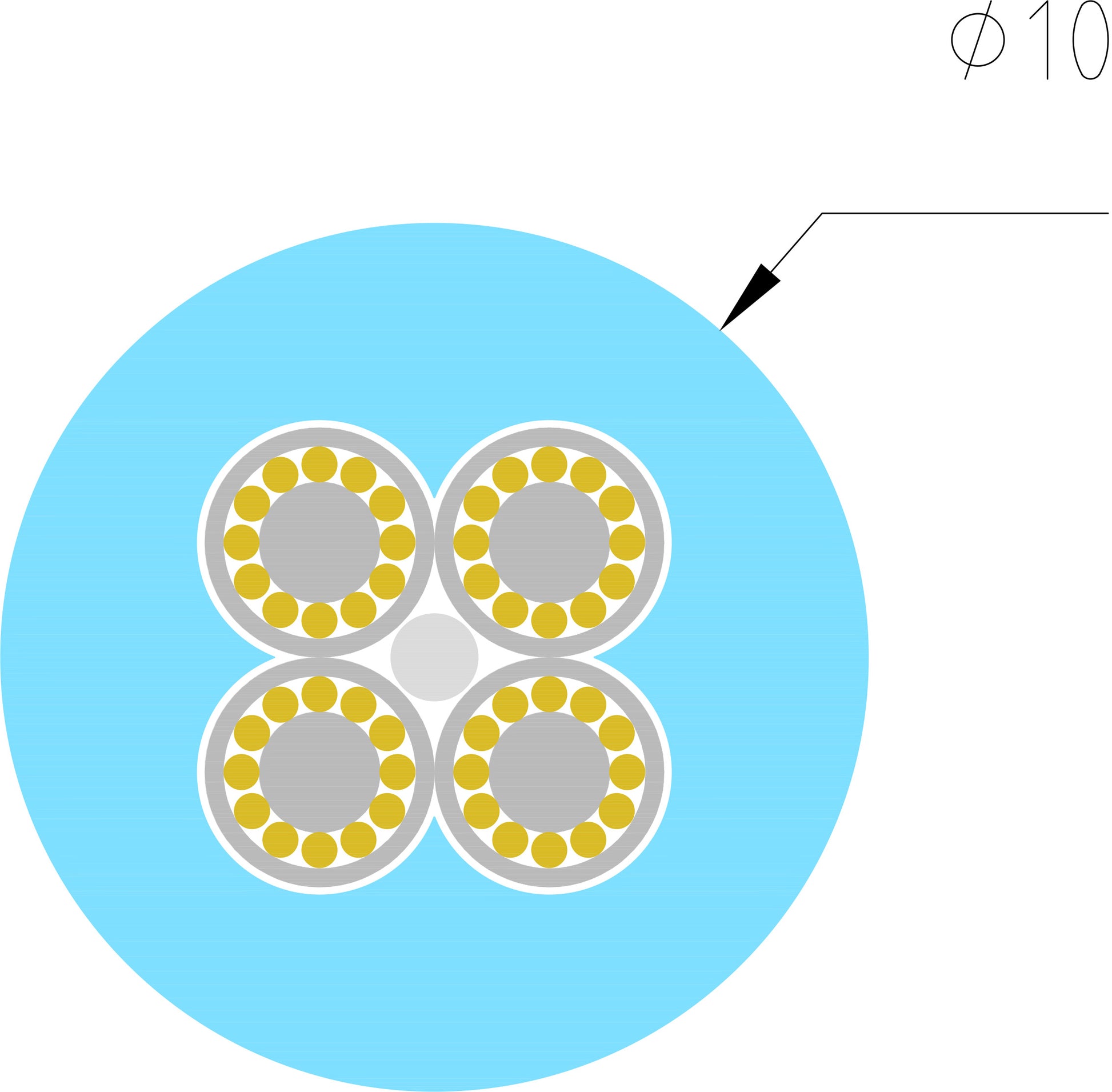

The design is a 4 x 1.6 mm² square shaped lead configuration, where each lead comprises a plastic core around which 12 strands 5N Oxygen-free Copper are spun in a tight pitch. This minimizes skin-effect and inductance efficiently and by choosing the sonically benign PP as di-electric (insulation) the sonical stability by preventing corrosion and material fatigue, will remain at highest possible level year after year.

The specification and performance fits right in between our Supra Quadrax and Sword edition.

It is available mounted with Supra CombiCon connectors in Star Quad, single-wire (2 ►2) fullrange configuration, single bi-wire (2 ►4), bi-amp (4 ►4)

 This also means that in addition to our standard lengths, we offer custom lengths upon order.

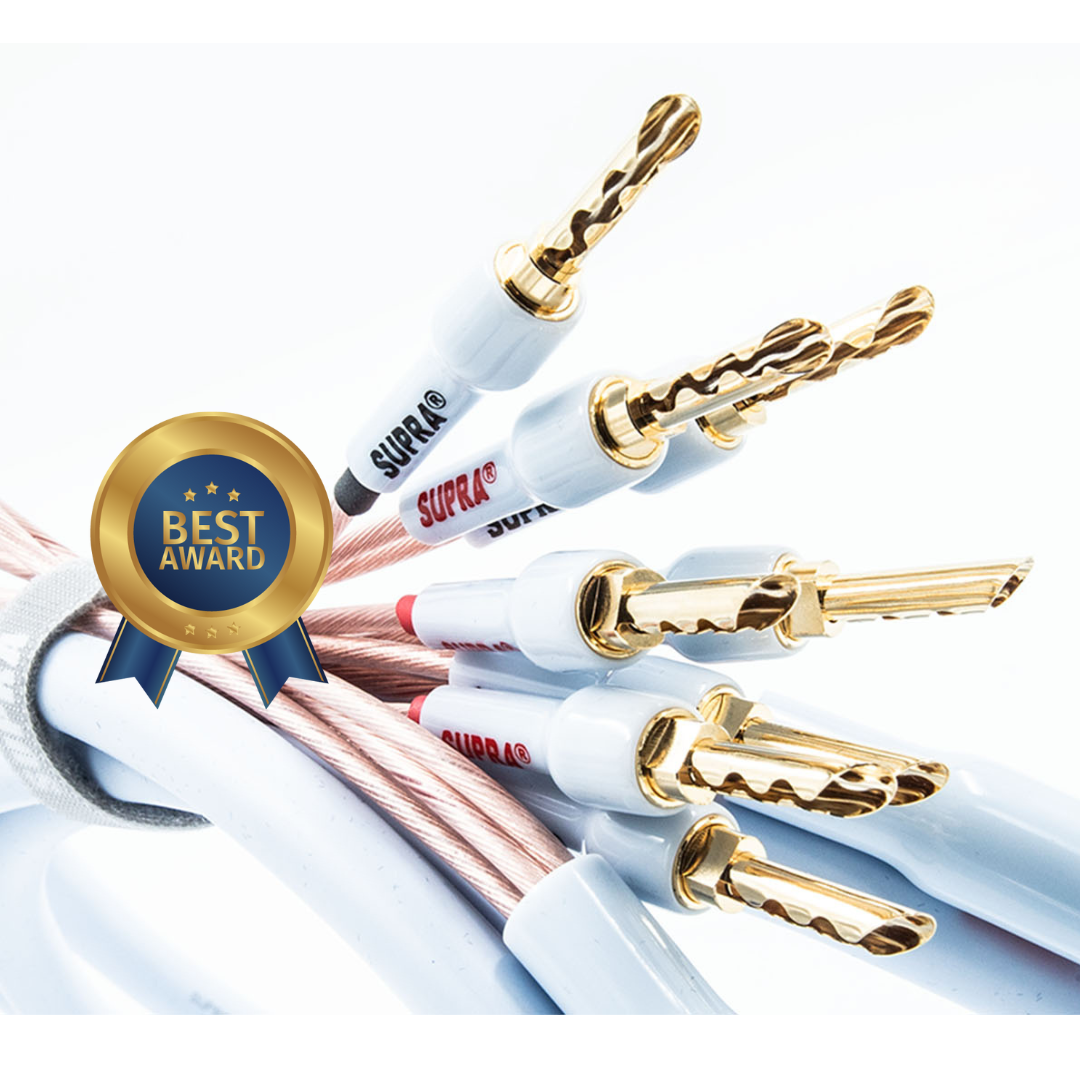

Terminated with Supra Combicon, Solid Copper, 24K Gold Plated Crimped Body connector and either Spades or Banana pins to suit your requirements.

The CombiCon Connector (as used on the flagship Supra Sword cables)

24K Gold Plated Copper connector crimp body with a M6 thread, a contact part which can be either a BFA/Banana or a Fork and finally a sleeve to finish up the perfect joint.

The crimp body is as said, crimped on to the cable strands forming an air tight connection, a very delicate junction between cable and contact.

CombiCon is pressed under high pressure onto the conductor. Done correctly, it brings the material together
into an airtight, homogeneous and electrically invisible joint, almost similar to fusion welding.

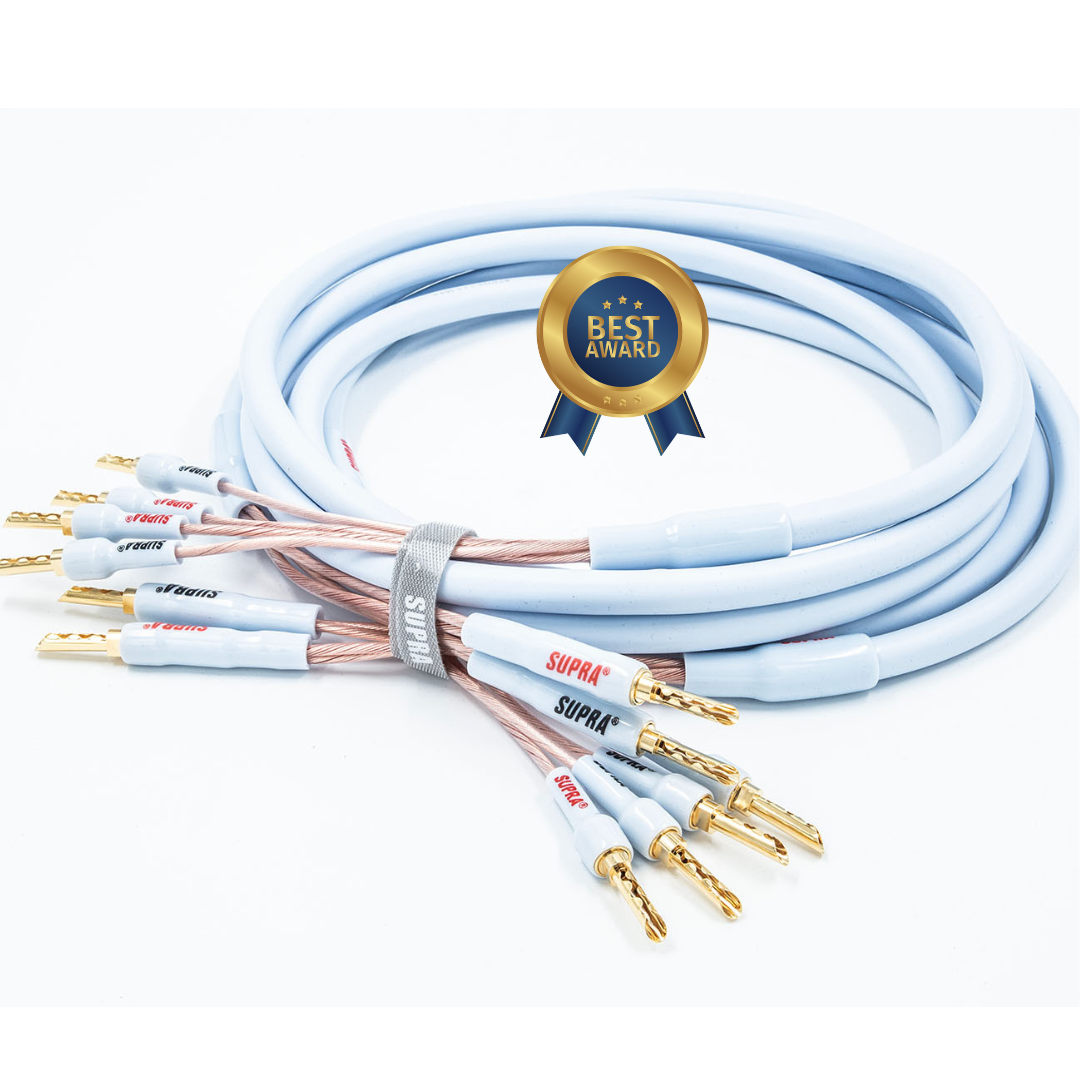

Star Quad (4>4) bi-amp version

Features and benefits

• Star Quad configuration for inductance cancellation and noise immunity
• CombiCon contacts features maximum customer convenience. Forks included.
• 5N Oxygen free Copper strands spun on core to minimize skin-effect
• PP dielectric for maximum signal integrity and chemical stability
• Developed in co-operation with renowned Swedish speaker designer as internal wiring
• Will be incorporated in his newest speaker project’s internal wiring
• Made in Sweden!

TECHNICAL INFO

Cross section Area: 4x1.6mm2 / AWG 15
Ledare: Transparent. + Röd, - vit
Jacket: Rubber based PVC GA54, round
Diameter: 10 mm
Colour: Iceblue (other colours upon order)
Marking: SUPRA XL ANNORUM 4x1.6 > Made in Sweden > Meter mark
Configuration: Stereo pair, 4 > 4 connectors, Right = red, left = black
Connector: Combicon, 16 x Banana pins & 16 x spades included
- Material: 24K gold plated Copper
- Wire connection: Crimp, 16 x Combicon body CB02XL M6
- Bending protection: Sleeve 8 x S1-2 red, 8 x S1-2 black
Cable splitt: 20cm, Sleeve 2 x S9 red, 2 x S9 black
Signal direction: Follow the arrows > amplifier > Speaker
