Supra CombiCon Series - A versatile, robust series of contacts
The Supra CombiCon allows for changing contacts from BFA/banana to Fork in a blink of an eye. And back again for that matter, providing for exceptional freedom and flexibility for any future desires. Electrically, the Supra CombiCon matches any of our cables and the design specification was clear-cut, it must not be a bottleneck for our Supra Sword speaker cable. Rest assured, there is no other contact, making a better job for Supra cables, even though competing contacts often are much more expensive.
This CombiCon comprises two parts: a connector (crimp) body with an M6 thread that attaches to the cable either by screw clamp or crimps and contacts part with an M6 thread that fits the connector body. The contact part may be either the Fork or the BFA/Banana pin
The Contact Part M6

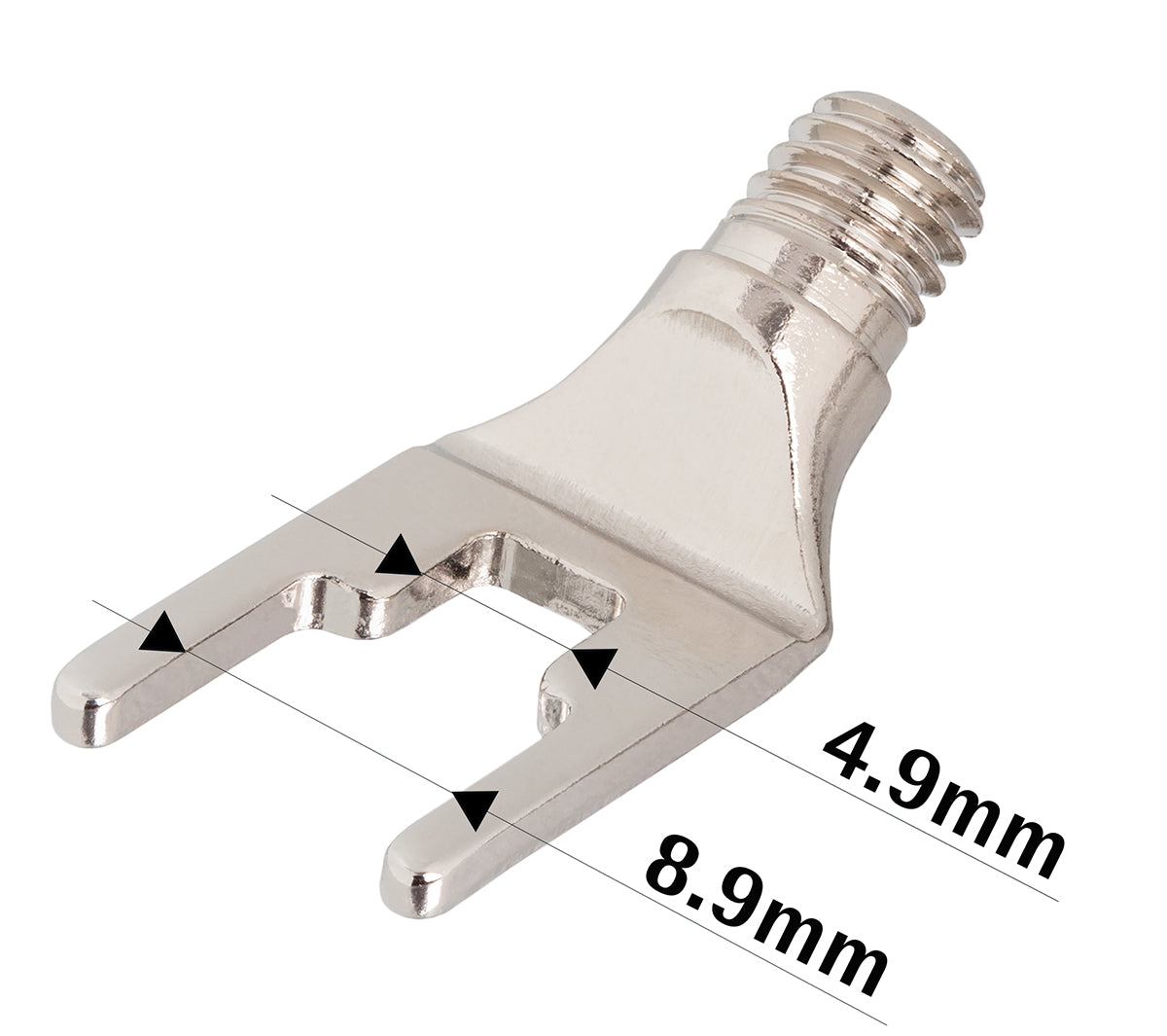

The Fork is angled for easier mounting in tight spaces, offers a two-step internal width to fit the vast majority of speaker terminals and displays a really good connection provided that the Fork is tightened properly in the Connector (crimp) Body M6 and to the speaker terminal.

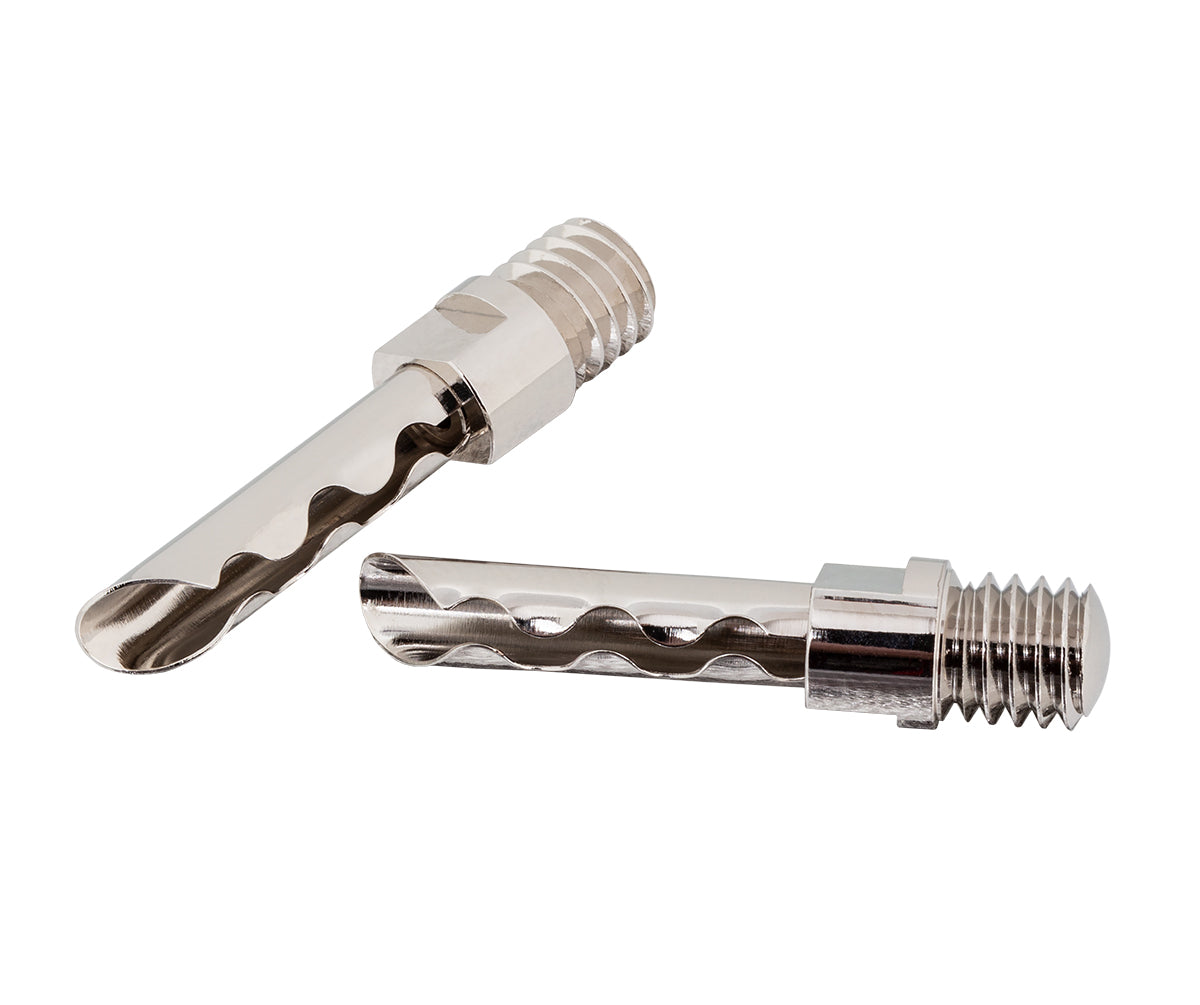

The optional BFA/Banana pin is reinforced and improved, now equipped with a socket for a small spanner or a fixed 5 mm U-wrench and finally a M6 thread. The optional BFA/banana pin fits into CombiCon body M6, CombiCon Crimp body M6 and BFA amplifier terminals.

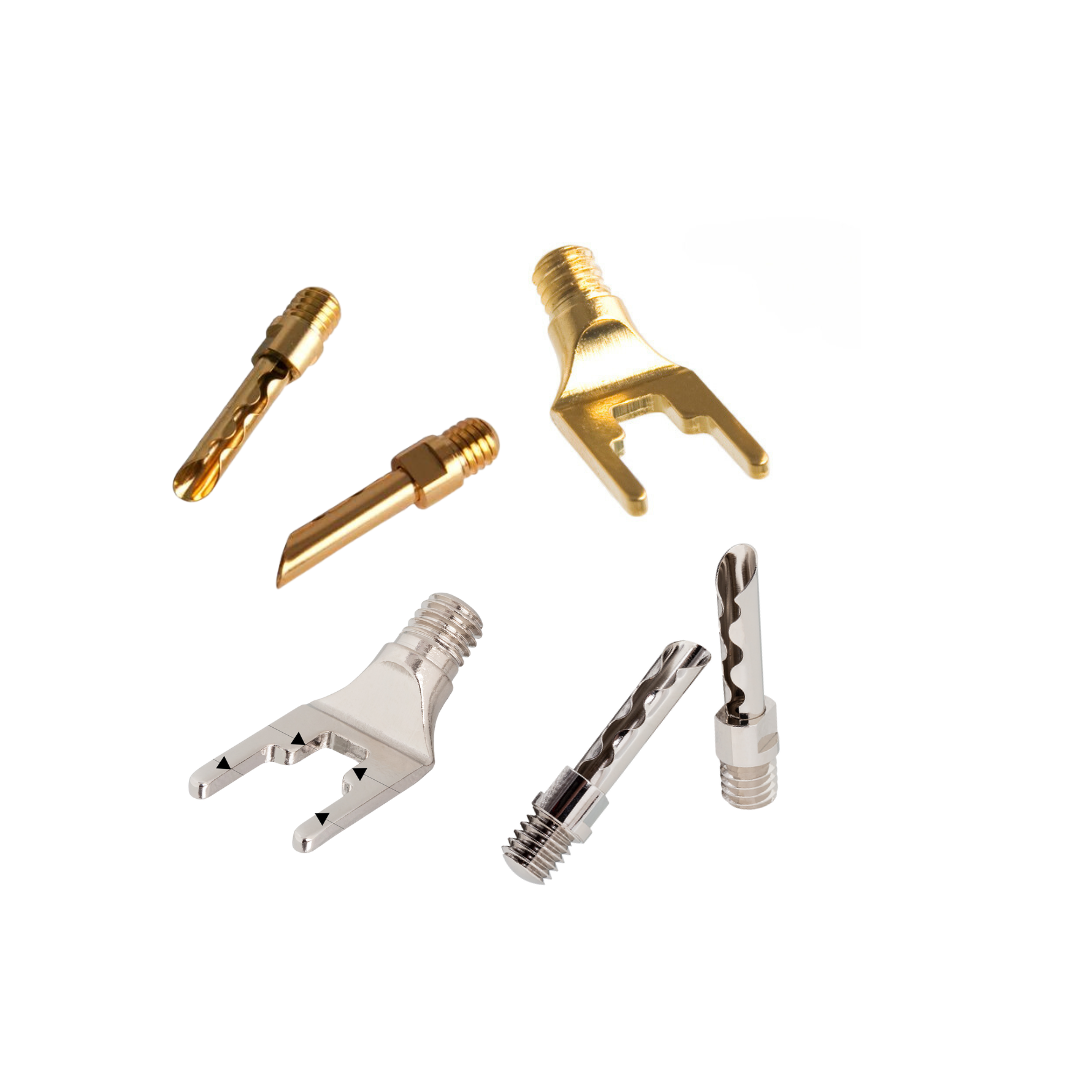

Supra CombiCon
The entire Supra CombiCon series consists of different parts which everyone can find here:
Gold plated:

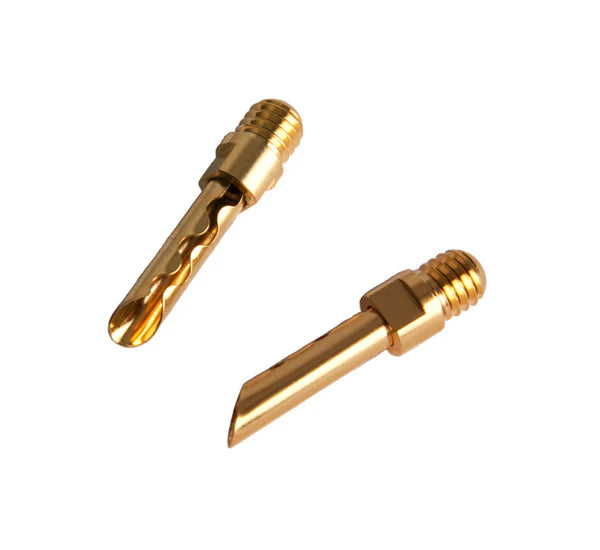

- BANANA PLUGS/PINS

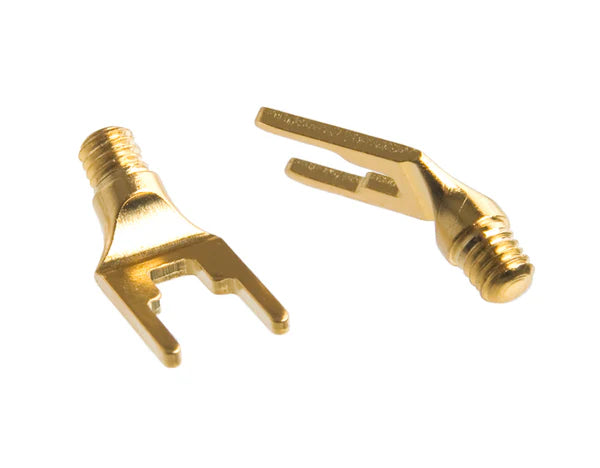

- SPADE PLUG (OR FORK PLUG)
- ALSO AVAILABLE AS A SET BANANA PLUGS OR SPADE PLUG
- AVAILABLE AS A COMPLETE KIT WITH SPADES AND BANANAS
Rhodium plated:
- BANANA PLUGS/PINS
- SPADE PLUG (OR FORK PLUG)
